Editing Interior Elevation Viewpoints

Each viewpoint of an Interior Elevation group can be edited separately. First, select the viewpoint:

•Select any individual Interior Elevation marker, or

•Select any individual line segment of the Interior Elevation line.

The pet palette and context menu commands opened from this segment affect that viewpoint only.

To edit the selected viewpoint:

•Open Interior Elevation Settings. (Use the context menu or the Info Box). Any changes you make here will apply only to the selected viewpoint. Note that certain options in IE Settings are grayed if you are editing a single viewpoint rather than an IE group.

•Use the pet palette’s options to manipulate the selected IE segment or its marker.

Delete/Restore IE Viewpoint

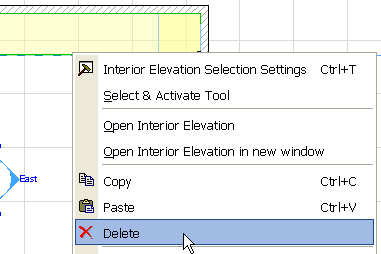

If you have selected an individual IE viewpoint, you can delete that single viewpoint using the context menu’s Delete command.

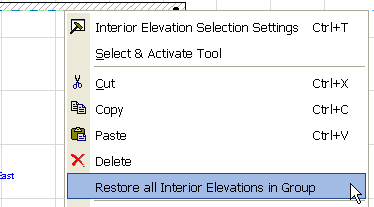

You can restore this viewpoint even after deleting it: select the IE group to which it belongs (select any part of the IE Limit Line) and use the Restore all Interior Elevations in Group command from the context menu.

Note: This command regenerates the IE viewpoint, but any 2D edits you made in this viewpoint before deleting it have been lost.
