Editing the Interior Elevation Limit Line

Selecting any segment of the IE limit polyline selects the entire IE group. If the IE group uses a single, common marker, then selecting the marker also selects the entire IE group.

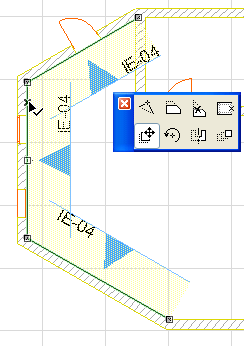

As when editing other polylines in ArchiCAD, use the pet palette’s line editing options.

Inserting a node will create a new IE viewpoint in the IE group.
