The following is a summary of the commands and functions that are affected by the management of the IFC model and data (in the event that the IFC Add-On has been installed).
Note: To handle IFC, the IFC 2x3 Add-On is automatically inserted into the ArchiCAD environment during ArchiCAD installation. The IFC add-on is updated with each ArchiCAD Hotfix. However, it is possible that the Add-On is updated between ArchiCAD Hotfixes. Check the latest available IFC add-on release at: http://www.graphisoft.com/support/ifc/.

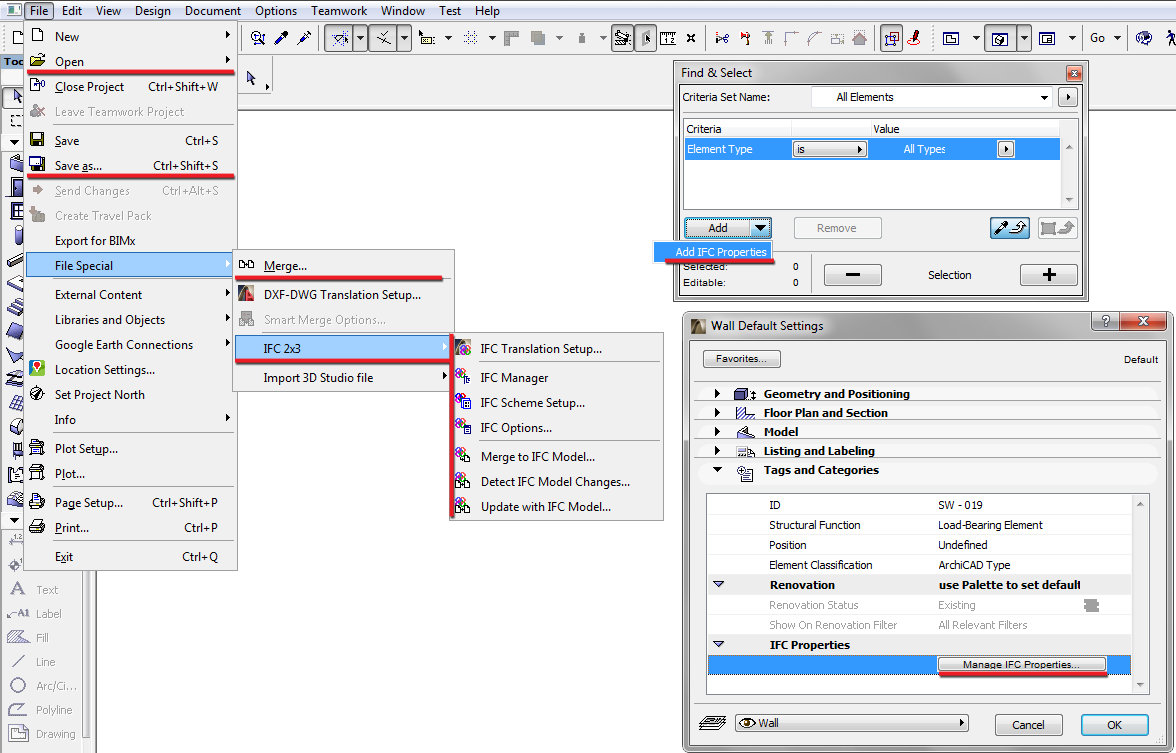

The following commands can be accessed from the File menu after the IFC Add-on is installed:
IFC Data Handling
•IFC Manager
•Manage IFC Properties (Element Settings)
•IFC Scheme Settings
•IFC Options
•Find & Select
•Interactive Element Schedule
IFC Export Functions
•Save as
•Merge to IFC Model
•Publish to IFC formats using Publisher
See Export Functions.
IFC Import Functions
•Open
•Merge
•Update with IFC Model
See Import Functions.
Detect IFC Model Changes
See Change Detection.
IFC Translation Setup
See IFC Translators.
