Doors

New Doors

•New Telescopic elevator doors -> DACH only

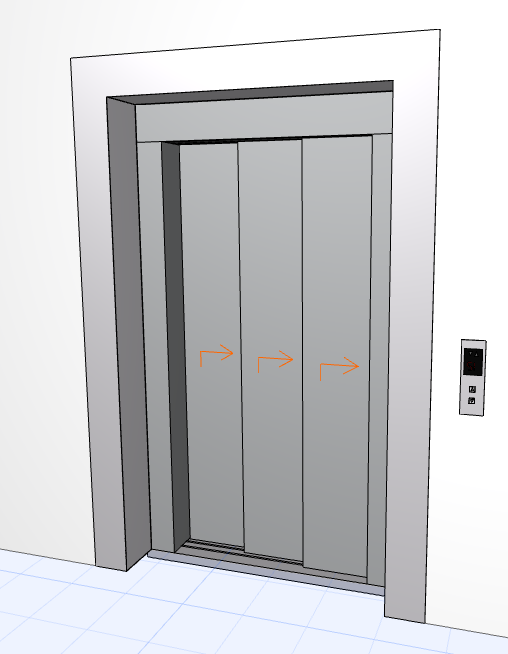

•Telescopic Door

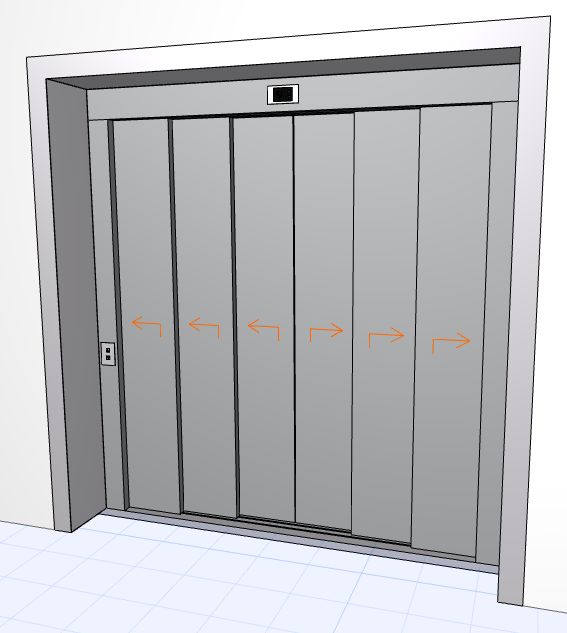

•Telescopic Double Door

TelescopicDoor1.png    TelescopicDoor2.png

•New Doors with one sidelight: door leaf is hinged on the sidelight side

New Door Leaf Types

•25 new door leaf types:

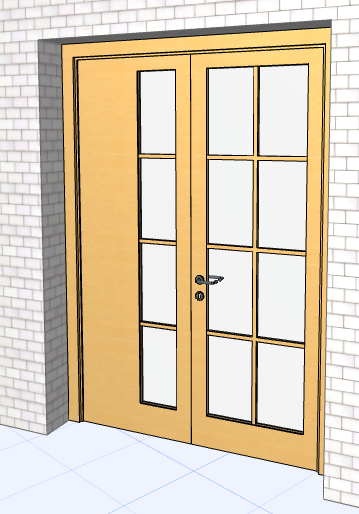

•All doors have an empty door panel option -> DACH only.

•Double doors can be designed with two different door panels -> DACH only


Improvements for Doors with Sidelight

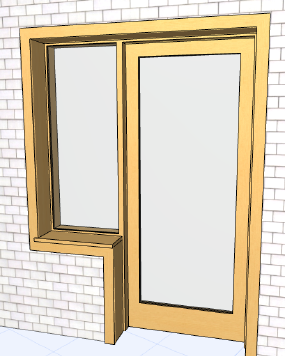

•Set a casing for doors with one or two sidelights, even those with a raised sidelight parapet (T-shaped and P-shaped doors).


•Horizontal division is available for doors’ sidelights. Divided parts can be designed with different sash and opening types.

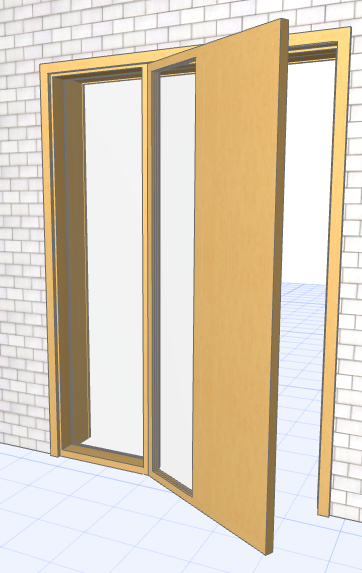

•New doors with one sidelight: door leaf is hinged on the sidelight side.


Improved 2D Representation of Doors

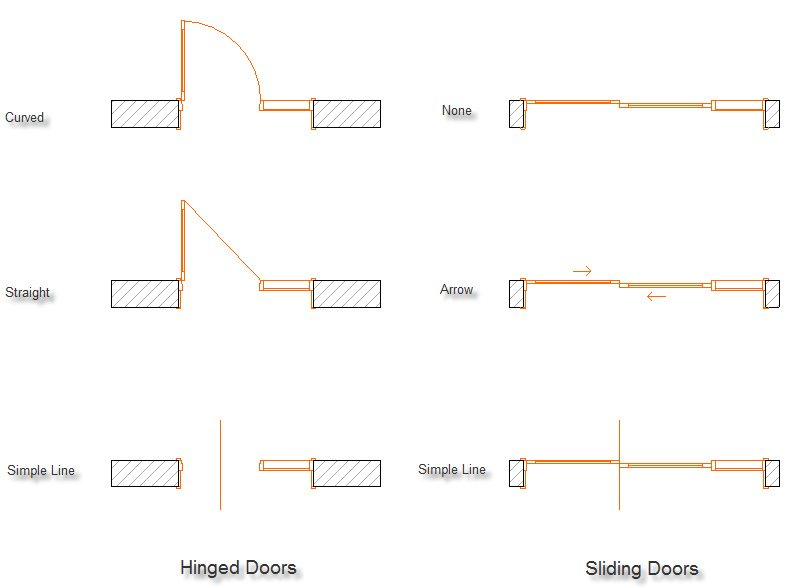

•New opening line representation is available for doors: simple line, drawn at the axis of the door opening


•New arrow symbol on sliding doors

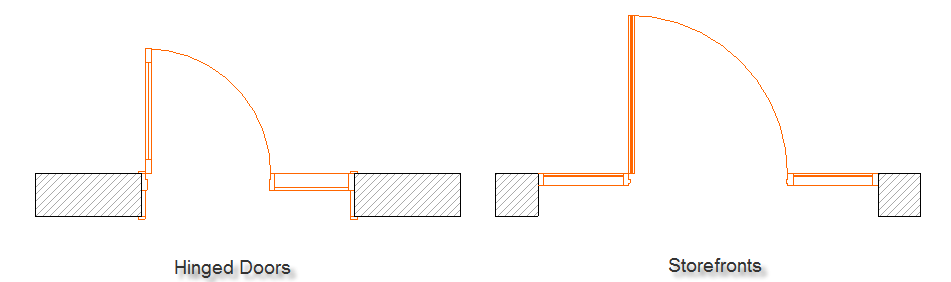

•Glazing of door leaves is shown on floor plan


More Parameters for Sliding Doors

Leaf overlapping and gap between door leaves can be set in sliding doors.

Garage Door Enhancements -> DACH only

A new motor position is available in Sectional Door

Editable door frame sizes in Garage Door Type 2 Top Hung

Sectional Door and Garage Door Type 2 Top Hung contain a threshold
