Anchor Door/Window Reveal to Wall Core

Anchor the Door/Window reveal to either the Wall face or the Wall core.

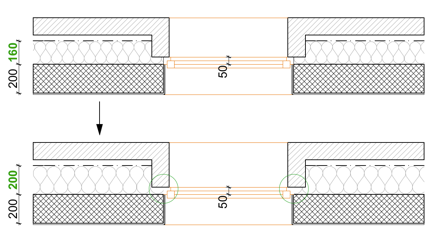

For example, you anchor a window to a composite Wall’s core. If you later make changes in the composite structure (e.g. thicker insulation), the reveal depth is automatically adjusted, to maintain the window’s distance relative to the Wall’s core skin.

See Anchor Reveal.
