Modifying Slanted Walls and Columns

Slanted walls and columns can be stretched and/or their slant angle can be modified with pet palette commands in 3D and Section views. (Columns can also be modified in Floor Plan views.)

In 3D, you can:

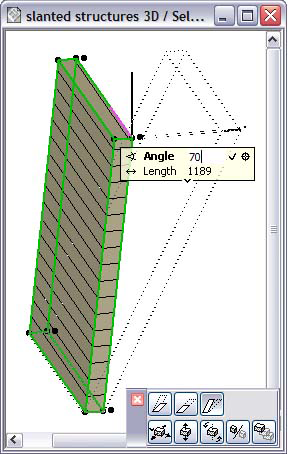

•Slant a wall/column or change the inclination angle of a slanted wall/column by selecting a corner point (for a wall) or the center of the top plane of the column, and dragging it along the horizontal plane. (Use Modify Angle in the pet palette.)

Note: You cannot slant a wall whose reference line is centered.

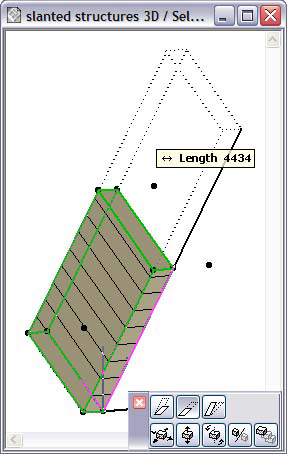

•Stretch a slanted wall/column by moving its top or bottom edge up or down along the wall plane (Use Stretch slanted height for walls, or Stretch height with fixed angle for columns, in the pet palette.)

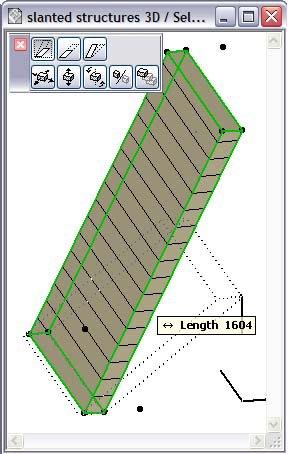

•Stretch a slanted wall/column vertically. (Use Stretch height in the pet palette.) As you change the wall height, the wall thickness remains the same but its slant angle is adjusted accordingly.

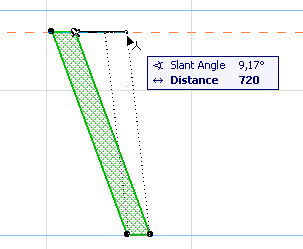

In Section view, you can use the same functions. (“Modify Slant Angle” is possible only if the wall’s reference line is perpendicular to the section line.) In Section view, the Tracker’s “Distance” field provides a way to edit the wall inclination using its offset (e.g. Distance) value.)

In addition, you can edit double slanted walls:

•If you elevate the top or bottom surface of the double slanted wall, the angles of both lateral surfaces will change

•If you elevate the height of one side of the wall, both lateral surface angles remain unchanged (and the top surface may be reduced to zero thickness)

The next two methods work on double-slanted walls in Section view only if the Section line is perpendicular to the wall.

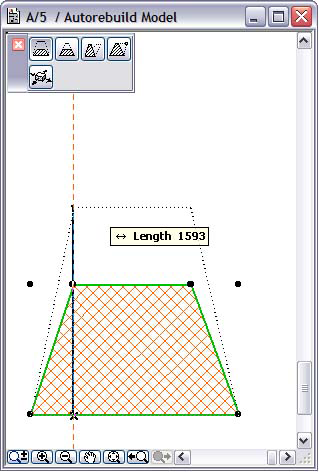

•If you move the top surface horizontally, both lateral surface angles will change while the top thickness remains constant

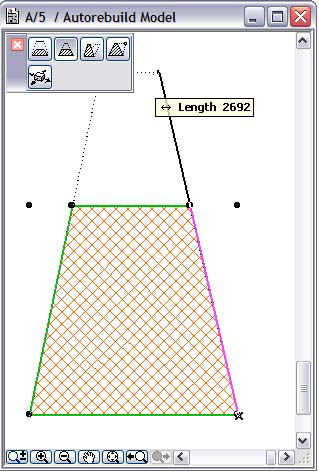

•If you move one of the top nodes of the double slanted wall horizontally, the angle of the surface on that side of the wall will change as will the top thickness, while the opposite surface angle will remain unchanged

You can modify the slant angle of Columns graphically on the Floor Plan as well as in 3D.
