See also Navigating in the Interactive Schedule Window.
ArchiCAD comes with predefined Schedules, such as Door List; Wall List; Window List. To open any of these schedules to list the elements in the current project, double-click the Schedule name in the Navigator.
.
(You can also access Schedules through the Go command of the Mini-Navigator Toolbar, or from the Window menu.)

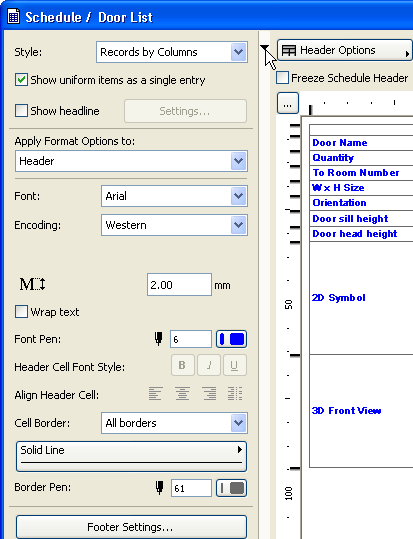

The Schedule window opens, showing the schedule, along with formatting options in the left column. To display the schedule only, without the formatting panel, click the black arrow on the dividing line.
For information on formatting the schedule, see Format Options (Interactive Schedule).
The Interactive Schedule window, like other Listing windows, has an additional shortcut in their bottom scrollbar allowing you to Fit the Width of the generated list to the current window size.
Adjust Cell Size and Display Size
•To adjust individual row or column heights, manually drag the tabs on the top and left side of the schedule.
•To fit the a row or column to its contents, double-click any tab.
•To fit the schedule to the current window size, click Fit to Width from the bottom scrollbar as needed.
Navigating in the Interactive Schedule Window
To navigate among fields in the Interactive Schedule window, use familiar keyboard shortcuts:
Move right or left: Enter, Shift+Enter
Move down or up: Tab, Shift+Tab
