Model Attributes of Wall Opening

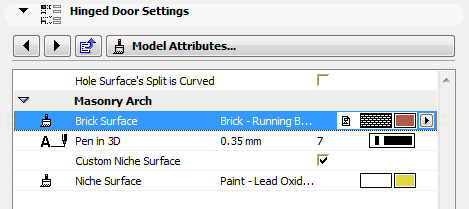

This is the Model Attributes tab page (in the Wall Opening Section) of the Custom Settings Panel of Door or Window Settings, from the INT ARCHICAD Library.

Use this page to define the 3D attributes of the opening’s masonry arch, if any.
