Improved Collision Detection in MEP Modeler Environment

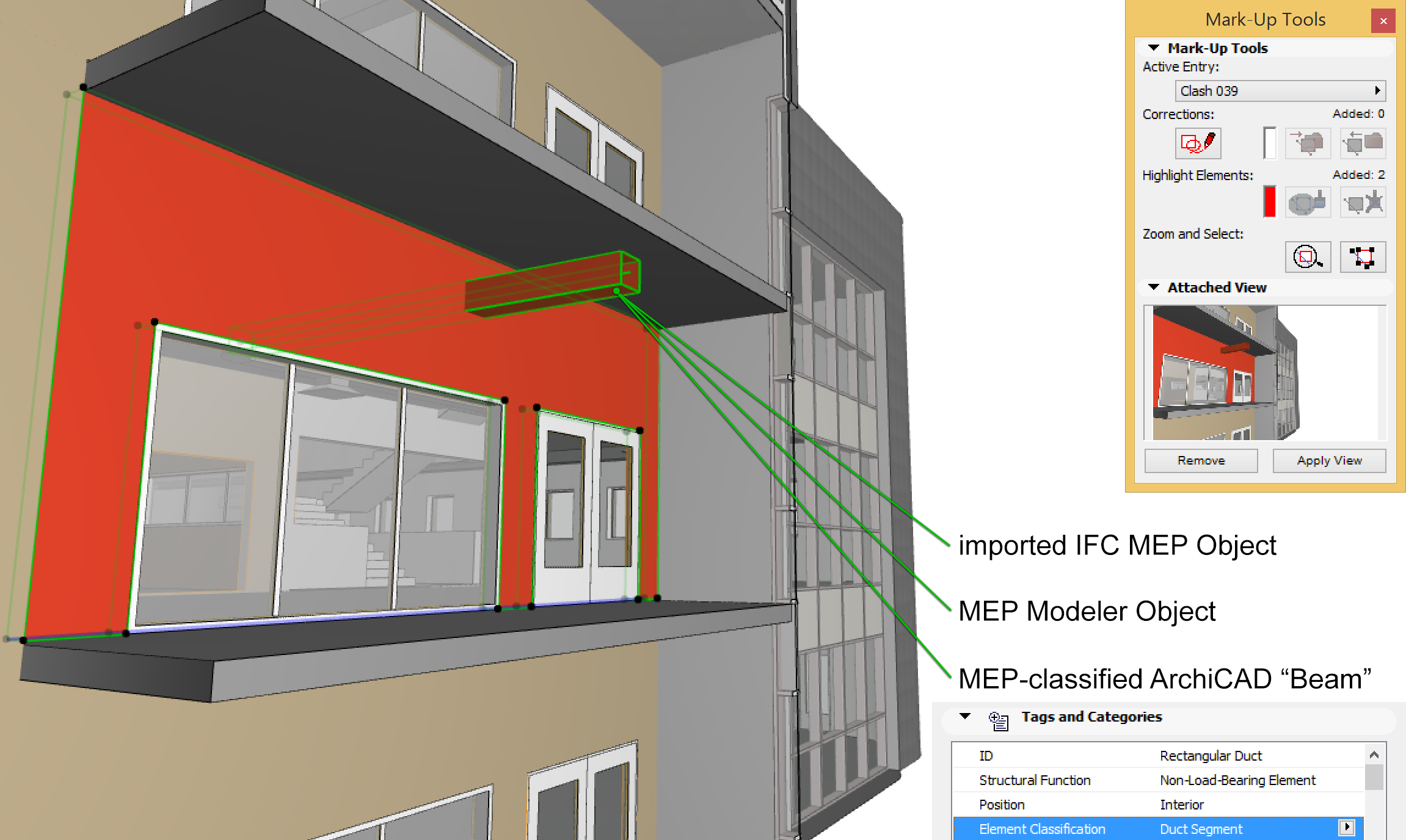

Collision detection now works for all elements classified as MEP-type in Element Settings (Tags and Categories > Element Classification), and not just for MEP Modeler elements. As a result, collision detection works on:
•all imported IFC MEP elements (regardless of which MEP application exported the IFC model), and
•all ARCHICAD project MEP Objects and MEP-classified elements (for example, pipes defined with Beam tool, but classified as MEP elements).
The collision detection function works between solid and solid and between solid and open shell geometries.
For improved performance, collision detection works on a multicore basis to avoid slowdowns, and the algorithm itself is now much faster than in previous versions.
Element Classification Available for MEP Elements
Unique element classification (Element Settings > Tags and Categories) can be set for Ductwork, Pipework and Cabling elements and equipment in the MEP Modeler environment. This means you can classify an element in a way that best conforms to IFC element classification and IFC model export.
Element Classification has another advantage, not directly related to IFC exchange:
•Search for MEP elements by using specific “Element Classification” values as criteria
•List MEP elements according to their element classification, in the Interactive Element Schedule
Automatic MEP Modeler License Reservation
With the MEP Modeler network license, anyone can use the MEP Modeler functions, provided that a license is available.
