Beam Display on the Floor Plan

When you create a beam with the Beam Tool, ARCHICAD generates its Floor Plan display according to your choices in Beam Settings. Like other construction elements, a Beam’s essential structure is derived from its Building Material.

Use the Floor Plan Cut Plane, combined with element projection preferences, to determine which parts of the placed beam should be displayed.

See Floor Plan Cut Plane (Global Setting).

See also How to Display Individual Elements on the Floor Plan.

Global Settings for Beam Display

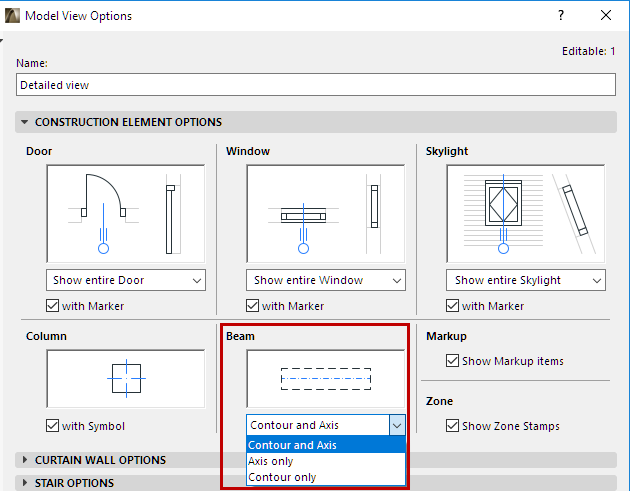

In Document > Model View > Model View Options (Construction Element Options), use the “Beams” options to set Beam display by view:

Display beams in their entirety, or just the reference axes, or just the contours.
