Tool Settings Dialog Box Customization

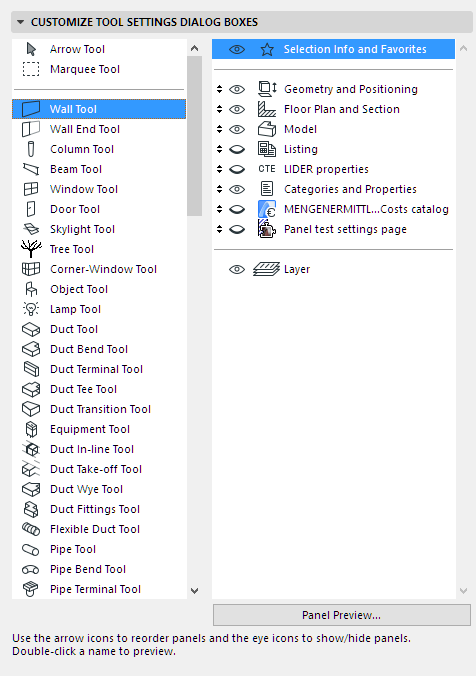

Go to Options > Work Environment > Tool Settings Dialog Boxes.

Use the splitter bar as needed to change the width of the fields in this dialog box.


The left window contains a list of all ARCHICAD tools. The right window lists the panels that appear on the selected tool’s Settings Dialog Box.

To see what the selected panel looks like, double-click its name or click the Panel Preview button.

To change the order in which the Tool Settings panels appear, use the arrow icons.

To show or hide Tool Settings panels, click to open or close the relevant “eye” icon. (Multi-select to set show/hide preferences more quickly.)

When you are satisfied, click OK to apply the changes and close the dialog box.
