Automatic Trim: Example 2

Suppose you have the following Shells and Walls:


1.Select all the elements shown (Roof, Shell, Walls).

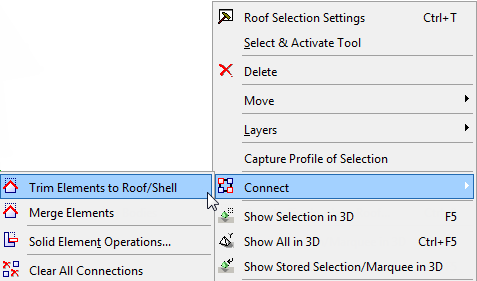

2.From the context menu, go to Connect and choose Trim Elements to Roof/Shell.

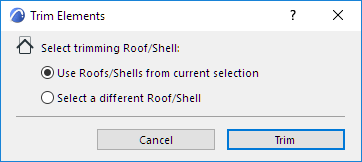

3.In the appearing dialog box, click Trim.


4.View the result in 3D:


For another example of an automatic trim, see Cross-Gable Roof.
