Parameter
Short Description
Long Description
Bottom Surface
Name of the Surface assigned to the Bottom Surface of the Slab.
Defined in Slab Settings

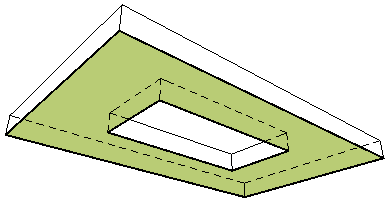

Bottom Surface Area
Area of the Surface of the Slab Bottom
Reduced by any trims, SEO's or holes.

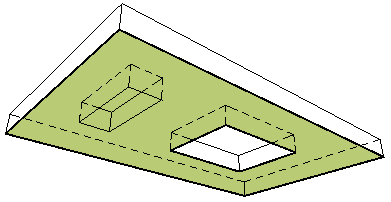

Conditional Surface Area of the Bottom
Surface Area of the Bottom of the Slab - this Area may be conditioned on a defined Calculation Rule.
Condition: Subtracts the Area of holes only if they exceed a given size, as defined in Options > Project Preferences > Calculation Units & Rules ("Reduce Slab Surface by…")
Reduced by trims and SEO's.

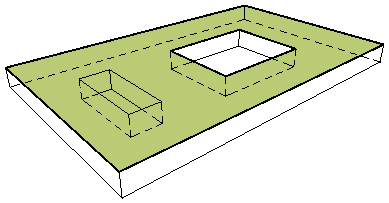

Conditional Surface Area of the Top
Surface Area of the Top of the Slab - this Area may be conditioned on a defined Calculation Rule.
Condition: Subtracts the Area of holes only if they exceed a given size, as defined in Options > Project Preferences > Calculation Units & Rules ("Reduce Slab Surface by…")
Reduced by trims and SEO's.

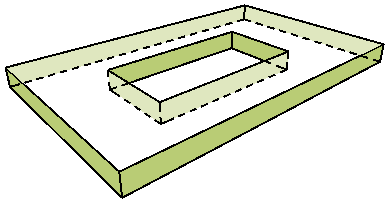

Edge Surface

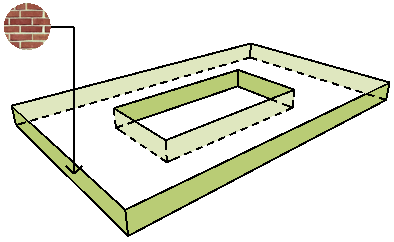

Name of Surface assigned to Slab edges.
Lists the Slab's default edge surface (as defined in its Building Material). Not listed for composite Slabs.
To list all Surfaces, including custom ones and those of composite elements, use a Surface-type list (e.g. All Finishes).
Edge Surface Area
Area of the Surface of the edge of the Slab
Reduced by trims and SEO's.

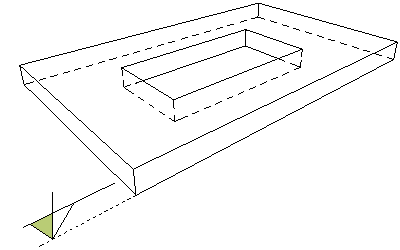

Elevation Bottom
Elevation of the Bottom of the Slab
Elevation Top
Elevation of the Top of the Slab

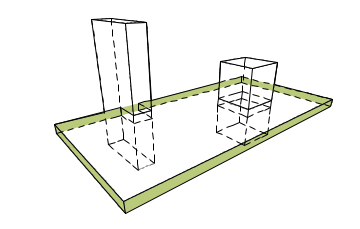

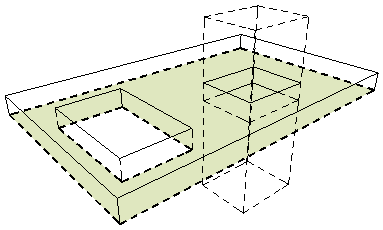

Gross Surface Area of the Slab Bottom
Area of the Surface of the Bottom of the Slab, including the Surface of any holes.
Reduced by trims. SEO's are ignored

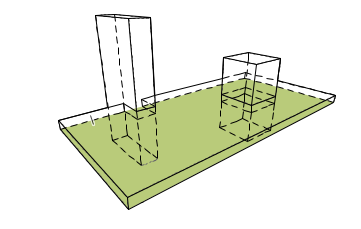

Gross Surface Area of the Slab Bottom with holes
Area of the Surface of the Bottom of the Slab, subtracting the Surface of any holes.
Reduced by trims. SEO's are ignored

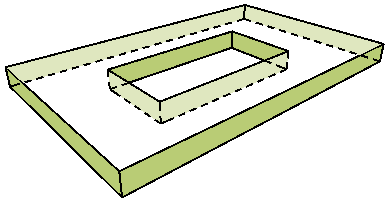

Gross Surface Area of the Slab edges
Area of the Surface of all the Slab edges. Hole edges are ignored.
Reduced by trims. SEO's are ignored
Gross Surface Area of the Slab edges with holes
Area of the Surface of all the Slab edges, including the edges of any holes.
Reduced by trims. SEO's are ignored

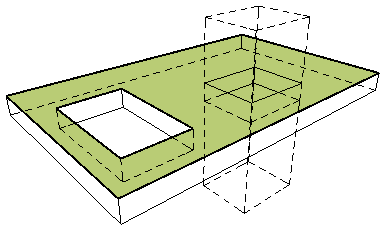

Gross Surface Area of the Slab Top
Area of the Surface of the Top of the Slab, including the Surface of any holes.
Reduced by trims. SEO's are ignored
Gross Surface Area of the Slab Top with holes
Area of the Surface of the Top of the Slab, reduced by the Surface of any holes.
Reduced by trims. SEO's are ignored

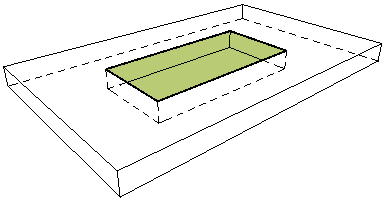

Holes Surface Area
Total Top Surface Area of all holes in the Slab, measured according to the Slab's 2D polygon.
SEO's are ignored
Reference Plane Location
Top or Bottom.
For a composite Slab, can also be Core Top or Core Bottom
Reference Plane location as defined in Slab Settings.

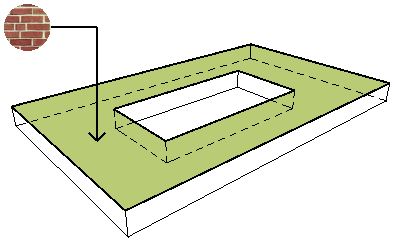

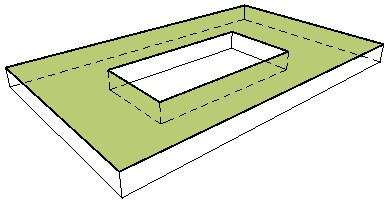

Top Surface
Name of Surface assigned to the Top Surface of the Slab.
Top Surface Area
Area of the Surface of the Top of the Slab.
Reduced by any trims, SEO's or holes.
