Parameter
Short Description
Long Description
Construction Type
Type of Stair Structure: Monolith, Beam, Stringers, or Cantilevered
Drain Length
Length of Draining (Monolith Structure only)

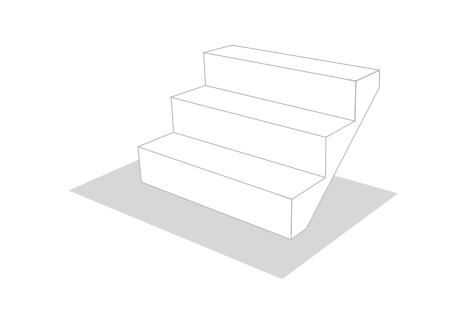

Drain Position
Position of Draining (Right and/or Left, relative to direction of Stair baseline).
Assign in "Draining on Flight" Panel of Stair Settings (Monolithic Structure only)
Profile Height
Profile dimension of the supporting Structure.
Not relevant for Monolithic structure.

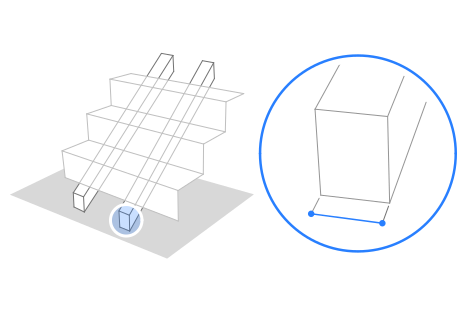

Profile Width
Profile dimension of the supporting Structure.
Not relevant for Monolithic structure.

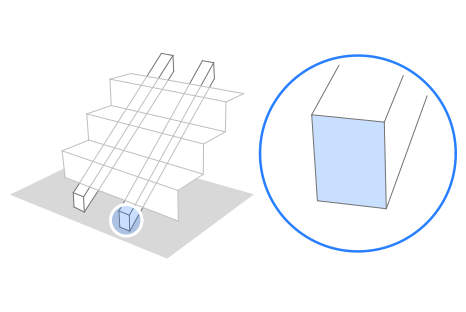

Profile WxH
Profile dimension of the supporting Structure.
Not relevant for Monolithic structure.

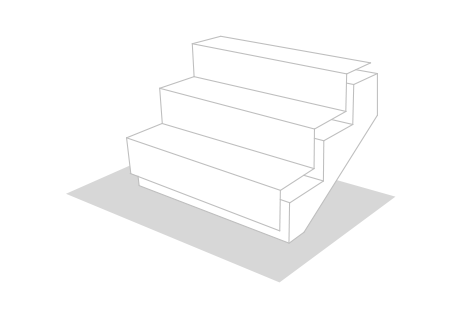

Secondary Thickness
As in Settings - relevant for Monolithic Flight Structures using a Stepped or Variable shape.
Shape Type
Shape of Stair bottom, as defined in Flight Structure Settings.
Flat, Stepped, Variable, or Filled (for Monolithic Flight Structures)
Straight or Stepped (for Beam-type Flights)
Stair Structure 3D Height
Height of Stair structure in 3D
Measured from the flight's lowest to highest z-point
Stair Structure Flight Index
Flight number
Flight structures are numbered consecutively
Stair Structure Landing Index
Landing number
Landing structures (if any) are numbered consecutively
Stair Structure Position
For Stringers: Left or Right position. All other Structures are listed as "Under Stair."
Thickness
Thickness of Structure element (as in Settings).
