Parameter
Short Description
Long Description
Curtain Wall Frame Slant Angle
Frame's slant angle in the plane of the Curtain Wall
E.g. 0 or 90 degrees for orthogonally positioned frames, other angles for diagonal frames (regardless of whether the Curtain Wall itself is slanted.)
Frame Class
Boundary, Mullion, Corner, Transom, or Custom
Assign Frame Class by clicking the frames in the Preview window of the Grid Pattern and Preview panel of Curtain Wall System Settings - Scheme Page.
Frames from the "Custom" class have been individually customized using Frame Settings, accessible through Curtain Wall Edit Mode.

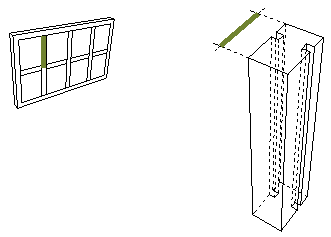

Frame Depth
Depth of the Frame profile.
Defined in the Frame Type and Geometry panel of CW Frame Settings.
Frame Length
Length of the Frame.
Frame Type
Frame Type (e.g. Butt-glazed, Generic)
Defined in the Frame Type and Geometry panel of CW Frame Settings.

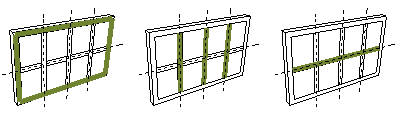

Location
Frame's position as related to the Curtain Wall: Contour, Vertical, Horizontal, or Diagonal.
Profile Height
Frame profile's height.
If the Frame Type is a profile element (e.g. Profiled Butt-Glazed Frame).
Profile Width
Frame profile's width.
If the Frame Type is a profile element (e.g. Profiled Butt-Glazed Frame).
Profile WxH
Frame profile's width and height dimensions.
If the Frame Type is a profile element (e.g. Profiled Butt-Glazed Frame).
Surface
Surface assigned to the Frame.
From Frame's Building Material. Can be overridden in Curtain Wall Frame Settings.
