Editing an Arc Using its Tangent

Edit an arc from any point along its edge using the tangent to the nearest arc endpoint.

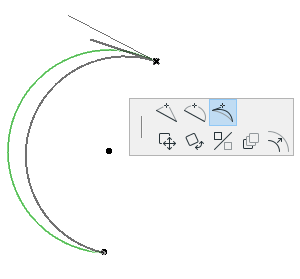

•Click on the edge of any arc and choose the Edit segment using tangent icon from the pet palette.

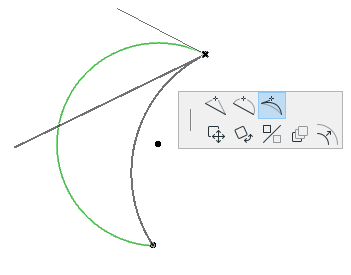

•The tangent to the nearest arc endpoint appears on the plan. Move the cursor to edit the tangent line by choosing a new tangent endpoint. A rubber band line indicates the shape of the resulting new arc. Click to place.
