Find and Select Elements

Use the Find & Select Palette to select and deselect elements based on defined criteria.


Open this palette from Edit > Find & Select;

or click the Find & Select shortcut from the Standard Toolbar:


The Find & Select palette can remain open as long as you wish on top of all windows.

Set up Criteria for Find & Select

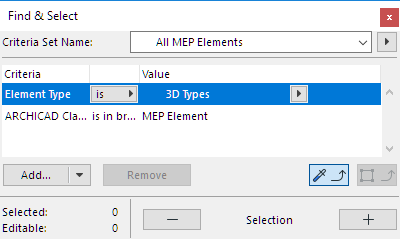

To set up the Find & Select Criteria, you can use predefined Criteria Sets, or set up the criteria manually, as described in these sections:

Predefined Criteria Sets

Define Element Criteria

Define Criteria Based On Selected Elements

Click Plus to Select

Once you set up the criteria, click the Plus button. All elements that fit your defined criteria are selected.


Elements are selected on the visible layers of the currently active window.

The Selected and Editable values at bottom left give you feedback on the currently selected elements in the project.

Deselect Elements

Click the Minus button to deselect all the elements that fit the current criteria in the Find & Select Palette.

Define Criteria Based On Selected Elements

Use this feature if you have added a number of criteria (e.g. Element Type, Layer, Surface) in the Find and Select dialog box and want to define their values based on an existing element. This is a quick way to define a Find & Select criteria set.

1.In the Find & Select dialog box, define the criteria you want to search by (e.g. Element Type, Layer).

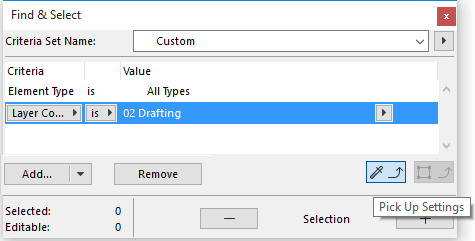

2.Click the Pick up Settings button to activate it.


3.In the project, Alt+click an element whose settings you want to load.

4.The Element Type and Layer values of the clicked element are now loaded in the Find & Select dialog box.

Use Marquee in Find & Select

If you have placed a Marquee, then the Find & Select includes the Marquee criterion automatically. You can then opt to search either inside or outside the Marquee.


Copy Settings

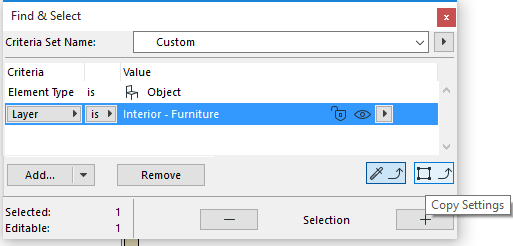

If any elements are selected, the second button - Copy Settings - becomes active. Click the button to load the settings of the last selected element into the Find & Select dialog box.
