Project Indexes

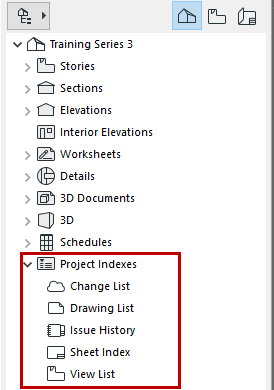

Project Indexes are table of contents-type items listed in the Project Map of the Navigator.

Use Project Indexes to make lists of revisions, issues, views, layout sheets and drawings, based on customized criteria.

To open an index, go to the Navigator palette and double-click its name.


Project index content is based on Project Index Schemes.

Like Interactive Schedules, Project Indexes can be saved as views, and you can edit project data directly from the Project Index window.


Index of Published Items

Suppose you are publishing a number of Layouts in a Publisher Set, and you want to include a Sheet Index which indicates which items have been published. (The same is available for published views.)

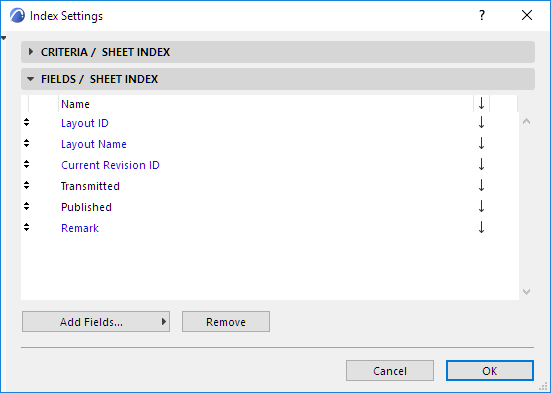

One way to do this is to add the field “Published” to the Index.


This places a field called “Published” on the Sheet Index. Its checkbox will be activated for those items which you have published, but only in the published copy of the Index (not while you work in ARCHICAD).

For example, if you publish Elevation layouts, as well as this Sheet Index, then the published Sheet Index Layout will look like this:
