Curtain Wall Junction Listing Parameters

Parameter

Short Description

Long Description

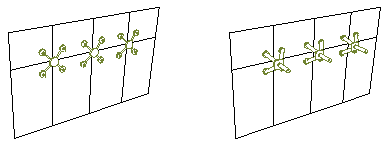

Junction Class

System or Custom.

Junctions from the "System" class use the settings at the Curtain Wall System Set­tings level.

Junctions from the "Custom" class have been individually customized using Junc­tion Settings, accessible through Curtain Wall Edit Mode.


Junction Type

Name of the Junc­tion Type

Defined at Junction Type in Curtain Wall Settings - Junctions page.
