Parameter
Short Description
Long Description
Default Going Depth
Going depth as defined in Stair Settings.
Default Riser Height
Riser Height as defined in Stair Settings
Default Riser Slant Angle
As defined in Stair Settings

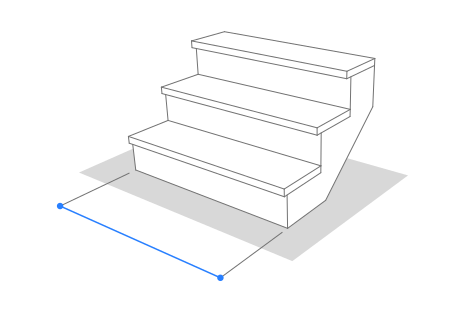

Default Stair Width
Width of the Stair as defined in Stair Settings.
Front Surface Area
Total Surface area of the Stair from the front

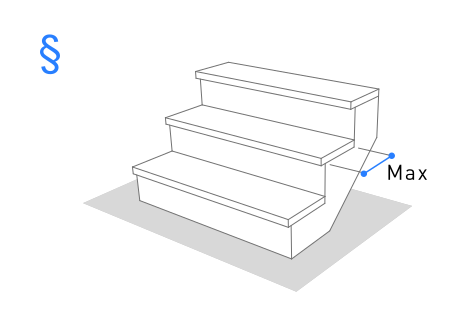

Maximum Going (by Rule)
As defined in Stair Settings (Rules & Standards Panel)
Maximum Riser Height (by Rule)
As defined in Stair Settings (Rules & Standards Panel)
Minimum Going (by Rule)
As defined in Stair Settings (Rules & Standards Panel)
Minimum Riser Height (by Rule)
As defined in Stair Settings (Rules & Standards Panel)

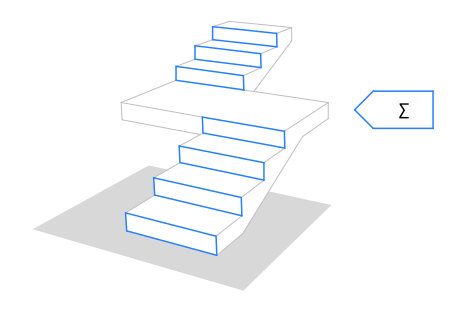

Number of Risers (total)

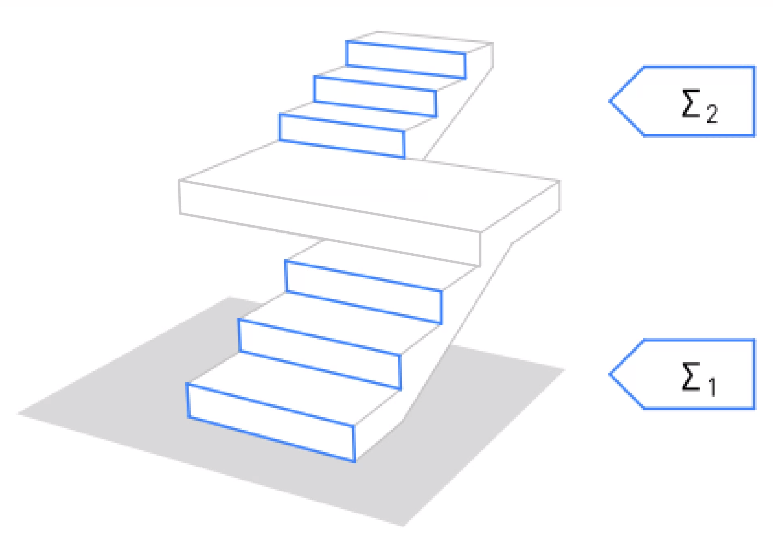

Number of Risers by Flights

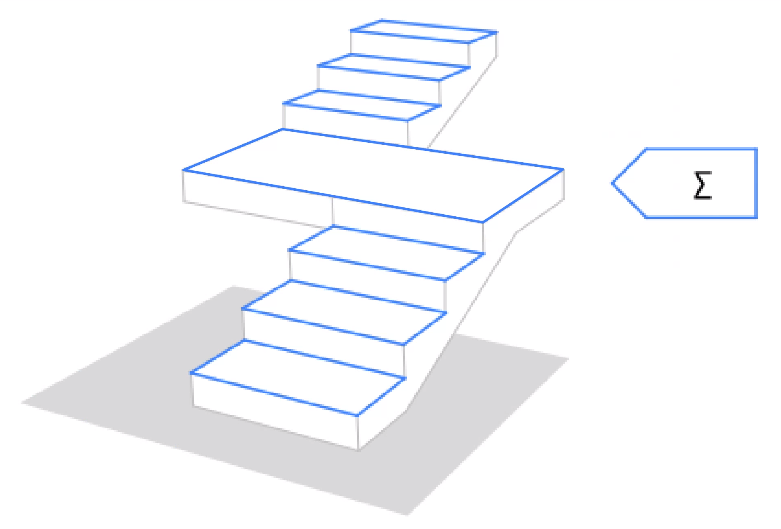

Number of Treads (total)
Number of Treads by Flights
Required Headroom Height
As defined in Stair Settings (Rules & Standards Panel)

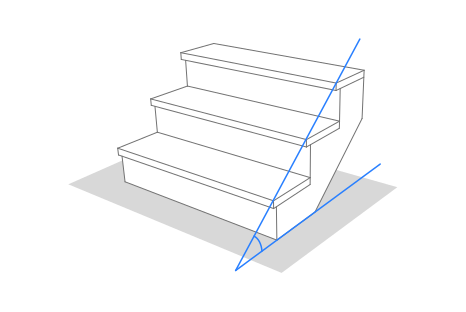

Stair Pitch
Walking Line Length
Length of Calculated Walking Line.
Calculated Walking Line: defined in the Geometry and Positioning panel of Stair Settings.
(Can differ from length of graphically edited Walking Line.)
