Curtain Wall Accessory Listing Parameters

Parameter

Short Description

Long Description

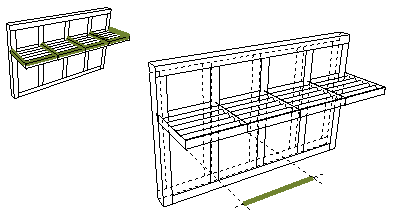

Length

Length parameter of the Accessory

Measured along the plane of the Curtain Wall

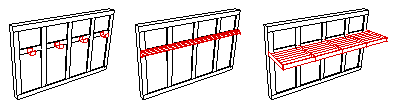

Accessory Class

System or Custom

Accessories from the "System" class use the settings at the Curtain Wall System Settings level.

Accessories from the "Custom" class have been individually customized using Junction Settings, accessible through Curtain Wall Edit Mode.


Accessory Type

Name of the Acces­sory Type

Defined at Accessory Type in Curtain Wall Settings - Accessory page.
