Correspondance de propriétés prédéfinie (Export d'Archicad vers IFC)

La prédéfinition de Correspondance de propriétés du Traducteur pour l'exportation IFC définit l'association des Propriétés et Attributs IFC en exportant le modèle Archicad vers IFC.

Voir Correspondance Propriétés pour exportation IFC.

Certaines données d'Attribut et de Propriété possèdent une règle de correspondance prédéfinie - il n'est donc pas nécessaire de créer ces règles manuellement dans Correspondance des propriétés.

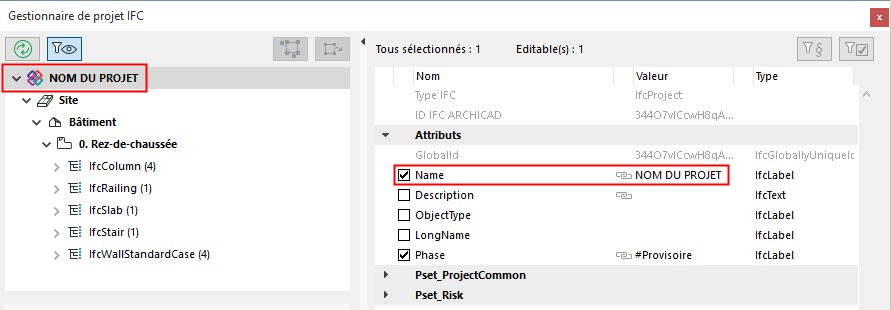

Bien que ces règles n'apparaissent pas dans le dialogue Correspondance Propriétés IFC pour l'exportation, elles peuvent être visibles dans le Gestionnaire et dans les dialogues de paramétrage d'élément (à condition de posséder des valeurs), où elles sont marquées par une icône en forme de chaîne.


Ces règles sont répertoriées dans le tableau suivant.

Commande Archicad

Paramètre Archicad

Types d'entité IFC

Données IFC

Gestionnaire de projet IFC

Information Projet

Nom du projet

IfcProject

Attribute>Name

visible/ éditable

Information Projet

Description de Projet

IfcProject

Attribute>Description

visible/ éditable

Information Projet

ID du projet

IfcProject

Attribute>GlobalId (voirComment régir l'ID global (attribut IFC) fondé sur les Infos Pro­jet Archicad)

-

Information Projet

Etat du projet

IfcProject

Attribute>Phase

visible/ éditable

Options Emplacement

Nord du projet

IfcProject

Attribute>Representa­tionContext>TrueNorth

-

Options Emplacement

Latitude

IfcSite

Attribute>RefLatitude

visible

Options Emplacement

Longitude

IfcSite

Attribute>RefLongitude

visible

Options Emplacement

Altitude

IfcSite

Attribute>RefAltitude

visible

Information Projet

Nom de Site

IfcSite

Attribute>Name

visible/ éditable

Information Projet

ID du site

IfcSite

Attribute>GlobalId (voirComment régir l'ID global (attribut IFC) fondé sur les Infos Pro­jet Archicad)

-

Information Projet

Description de Site

IfcSite

Attribute>Description

visible/ éditable

Information Projet

Adresse complète du site >Adresse site 1

IfcSite

Attribute>SiteAddress> AddressLines

-

Information Projet

Adresse complète du site >Adresse site 2



Information Projet

Adresse complète du site >Adresse site 3



Information Projet

Adresse complète du site >Boîte postale de Site

IfcSite

Attribute>SiteAddress> PostalBox

-

Information Projet

Adresse complète du site >Ville site

IfcSite

Attri­bute>SiteAddress>Town

-

Information Projet

Adresse complète du site >Etat site

IfcSite

Attri­bute>SiteAddress>Region

-

Information Projet

Adresse complète du site >Code postal site

IfcSite

Attribute>SiteAddress >PostalCode

-

Information Projet

Adresse complète du site >Pays site

IfcSite

Attribute>SiteAddress> Country

-

Information Projet

Périmètre brut du site

IfcSite

BaseQuantity>GrossPeri­meter

-

Information Projet

Superficie brute du site

IfcSite

BaseQuantity>GrossLan­dArea

-

Information Projet

Nom du Bâtiment

IfcBuilding

Attribute>Name

visible/ éditable

Information Projet

Description de Bâtiment

IfcBuilding

Attribute>Description

visible/ éditable

Information Projet

ID du bâtiment

IfcBuilding & IfcBuildingStorey

Attribute>GlobalId (voirComment régir l'ID global (attribut IFC) fondé sur les Infos Pro­jet Archicad)



Information Projet

Nom entier de Contact>Préfixe de titre de Contact

IfcPerson

Attribute>PrefixTitles

-

Information Projet

Nom entier de Contact>Prénom de Contact

IfcPerson

Attribute>GivenName

-

Information Projet

Nom entier de Contact>Deuxième pré­nom de Contact

IfcPerson

Attribute>MiddleNames

-

Information Projet

Nom entier de Contact>Nom de famille de Contact

IfcPerson

Attribute>FamilyName

-

Information Projet

Nom entier de Contact>Suffixe de titre de Contact

IfcPerson

Attribute>SuffixTitles

-

Information Projet

ID de Contact

IfcPerson

Attribute>Id

-

Information Projet

Rôle de Contact

IfcPerson

Attribute>Roles

-

Information Projet

Département de Contact

IfcPerson

Addresses>Postal> Inter­nalLocation

-

Information Projet

Société de Contact

IfcOrganization

Attribute>Name

-

Information Projet

Code de société de Contact

IfcOrganization

Attribute>Id

-

Information Projet

Adresse complète de Contact >Adresse site 1

IfcPerson & IfcOrganization

Attribute>Addresses>Pos­tal> AddressLines

-

Information Projet

Adresse complète de Contact> Adresse site 2



Information Projet

Adresse complète de Contact> Adresse site 3



Information Projet

Adresse complète de Contact> Boîte postale de Contact

IfcPerson & IfcOrganization

Attribute>Addresses>Pos­tal> PostalBox

-

Information Projet

Adresse complète de Contact> Ville de Contact

IfcPerson & IfcOrganization

Attribute>Addresses>Pos­tal> Town

-

Information Projet

Adresse complète de Contact> Etat de Contact

IfcPerson & IfcOrganization

Attribute>Addresses>Pos­tal> Region

-

Information Projet

Adresse complète de Contact> Code postal de Contact

IfcPerson & IfcOrganization

Attribute>Addresses>Pos­tal> PostalCode

-

Information Projet

Adresse complète de Contact> Pays de Contact

IfcPerson & IfcOrganization

Attribute>Addresses>Pos­tal> Country

-

Information Projet

Courriel de Contact

IfcPerson & IfcOrganization

Attri­bute>Addresses>Telecom > ElectronicMailAddress

-

Information Projet

Numéro de téléphone de Contact

IfcPerson & IfcOrganization

Attri­bute>Addresses>Telecom > TelephoneNumbers

-

Information Projet

Télécopie de Contact

IfcPerson & IfcOrganization

Attri­bute>Addresses>Telecom > FacsimileNumbers

-

Information Projet

Site Web de Contact

IfcPerson & IfcOrganization

Attri­bute>Addresses>Telecom > WWWHomePageURL

-

Options Etages

Altitude

IfcBuildingStorey

Attribute>Elevation

visible/ éditable

Options Zone

Nom

IfcSpace

Attribute>LongName

visible/ éditable

Options Zone

Numéro (No)

IfcSpace

Attribute>Name

visible/ éditable

(Elément)>Réglages

Classification et Proprié­tés > ID

(Type d'élément IFC)

Attribute>Name

visible/ éditable

(Elément)>Réglages

Classification et Proprié­tés>Classification

(Type d'élément IFC)

Attribute>ObjectType

visible/(éditable dans Traduc­teur exporta­tion, Correspon­dance des types)

(Elément)>Réglages

Classification et Proprié­tés>Classification

(Type d'élément IFC)

Attribute>PredefinedType

visible/(éditable dans Traduc­teur exporta­tion, Correspon­dance des types)

(Elément)>Réglages

Classifications et proprié­tés > Fonction structurelle

(Type d'élément IFC)

Pset_...Common>LoadBea­ring

visible

(Elément)>Réglages

Classification et Proprié­tés > Position

(Type d'élément IFC)

Pset_...Common>IsExter­nal

visible

(Elément)>Réglages

Classifications et proprié­tés>Etat de rénovation

(Type d'élément IFC)

AC_Pset_RenovationAnd­Phasing>Renovation Sta­tus

visible

(Elément)>Réglages

Classification et Proprié­tés>Classification

(Produit type IFC)

Attribute>ElementType

visible/(éditable dans Traduc­teur exporta­tion, Correspon­dance des types)

(Elément)>Réglages

Classification et Proprié­tés>Classification

(Produit type IFC)

Attribute>PredefinedType

visible/(éditable dans Traduc­teur exporta­tion, Correspon­dance des types)

Nomenclature>(Elément)

Général>ID unique

(Type d'élément IFC)

Attribute>Tag

visible/ éditable

Réglages Fenêtre/Porte

Prévisualisation et posi­tion>Largeur

IfcWindow / Ifc­Door

Attribute>OveralWidth

visible

Réglages Fenêtre/Porte

Prévisualisation et posi­tion>Hauteur

IfcWindow / Ifc­Door

Attribute>OverallHeight

visible

(règle de génération automatique de noms de type)

Matériau de construction/Nom de profil, dimensions d'élément.

Pour segments multiples : Nombre de segments, taille maximum de seg­ment, longueurs de seg­ment.

IfcColumn

Pset_ColumnCommon >Refe­rence

visible/ éditable

(règle de génération automatique de noms de type)

Matériau de construction/Nom de profil, dimensions d'élément.

Pour segments multiples : Nombre de segments, taille maximum de seg­ment, longueurs de seg­ment.

IfcBeam

Pset_BeamCommon>Refe­rence

visible/ éditable
