BIMx Hyper-model: Control texture size for optimal visual quality and file size

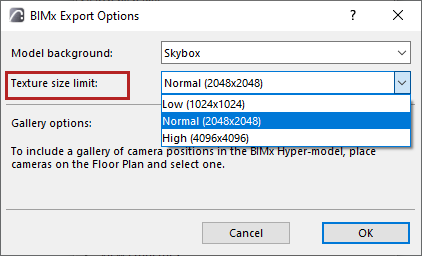

When exporting an Archicad model to BIMx (using the Publisher), you can now set your own texture size limit for a 3D view - for better control over model size and the time needed for export.

Previous limit was hard-coded at 1024 pixels. The new default is 2K, and you can max this out to 4K for best detail level, or choose a smaller texture size to limit file size and save time.

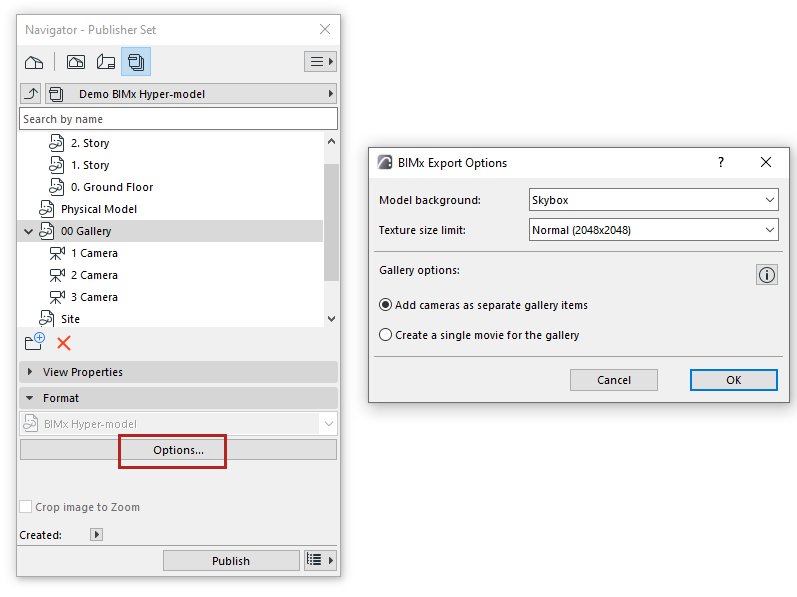

Also in the BIMx export workflow from Archicad: You’ll notice better info in the dialogs, prompting you to create camera paths for the BIMx Gallery.
