New Slope Label for MEP models

Use the new MEP Slope Label to display slope value on MEP routing elements with a single click.

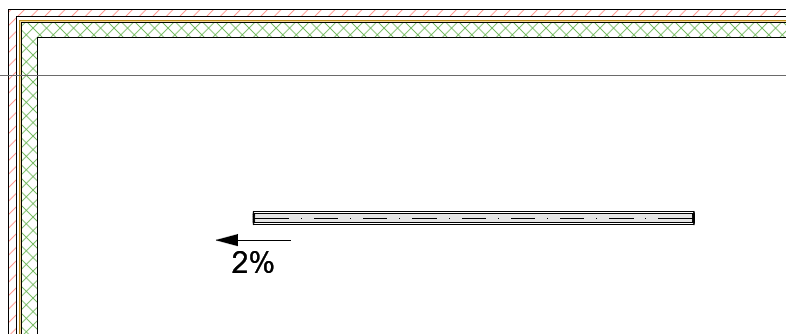

Text and arrow in Floor Plan

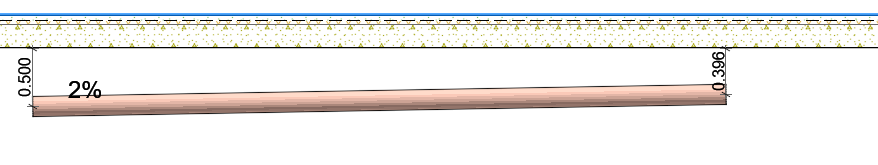

Text only in Section and 3D Document

Works for MEP routing elements only (with the exception of Bends or Flexible Ducts).
