Edit segment - alignment and offset

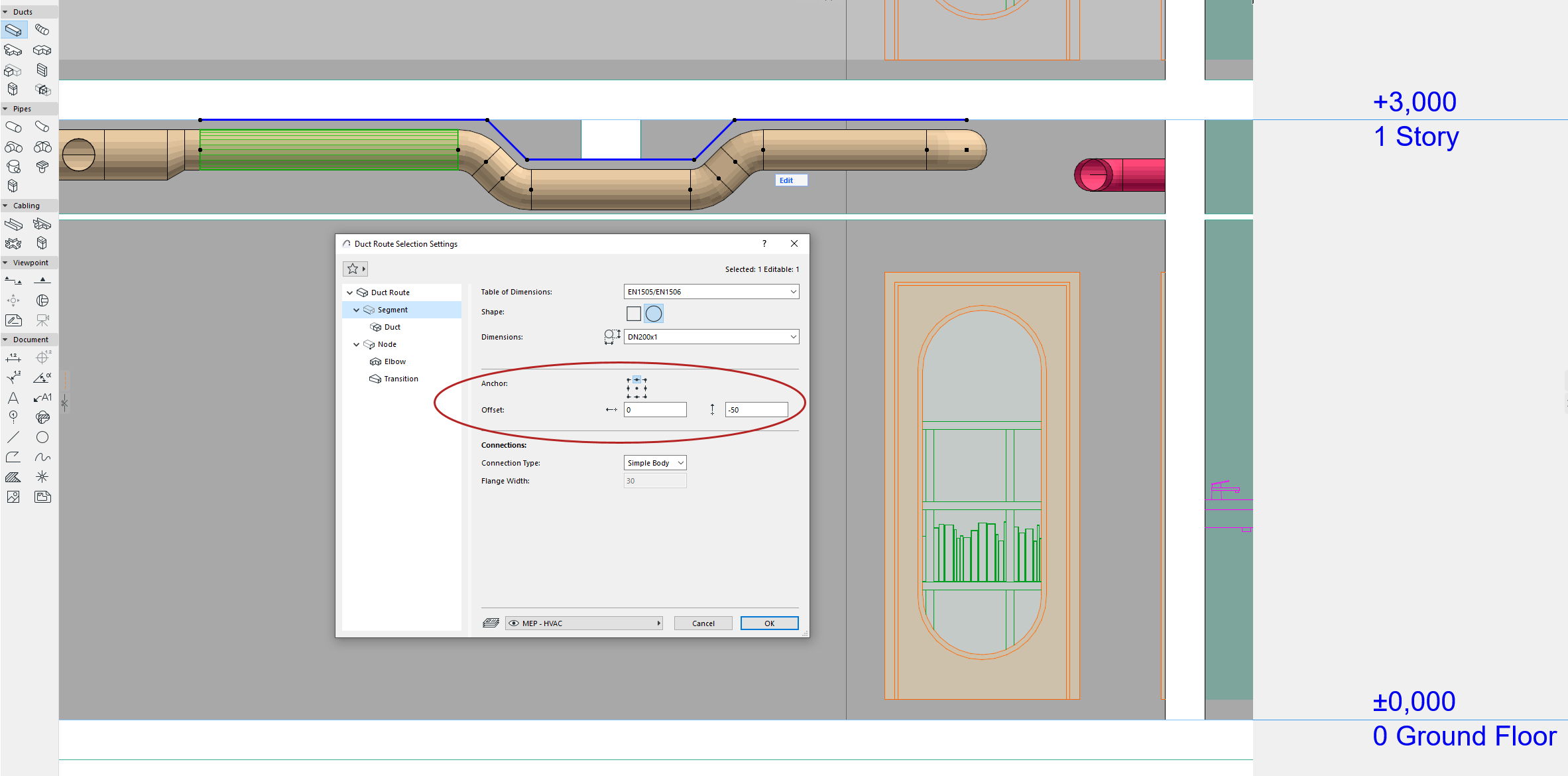

The reference line is at the center of route segments by default. Enter an offset or adjust alignment in the Info Box or Segment Settings as needed.

Note: To see the reference line in 2D views: turn on MEP Reference Lines at View > On-Screen View Options.

For example, to place a duct closer to a slab, realign route reference line to the bottom point. Or define an offset to keep a route at a certain distance from a wall or ceiling.

•Define values before or after placing the route

•Customize alignment or offset for any segment in Edit mode
