Model Attributes of Door/Window Opening

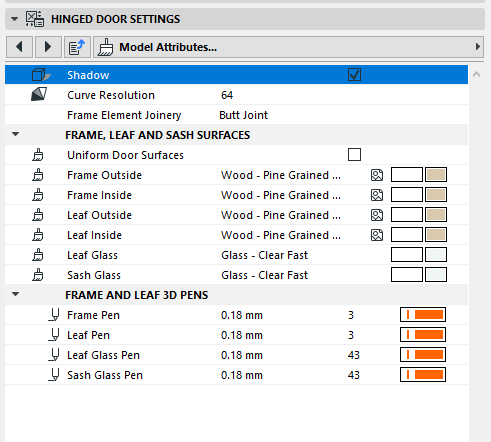

The following is a description of the Model Attributes tab page (in the “Door Opening” or “Window Opening” section) of the Custom Settings Panel of Door or Window Settings, from the INT Archicad Library.

Use this page to define the opening’s 3D appearance. The available controls depend on the components of the particular opening.

In addition to general attributes, you can set specific surface materials and 3D pens for the door leaf, frame, grid and glass components, and for the handle and handle accessory, if any.

Shadow

Turn on to display a shadow effect for this opening in 3D.

Curve Resolution

Applied to the opening’s curved components when generating their 3D display. (The circle formed out of the curved component will be divided into the given number of segments.) A higher curve resolution can improve the 3D appearance, but increases file size.

Frame Element Joinery

Choose either Mitered or Butt Joint.

Frame and Leaf (Sash) 3D Pen

These controls affect the parts of the Frame and Leaf/Sash that are displayed

•in the 3D window

•and in 3D-like form on the Floor Plan - that is, the Projected parts, if the opening’s Floor Plan Display option is set to Projected or Projected with Overhead.
