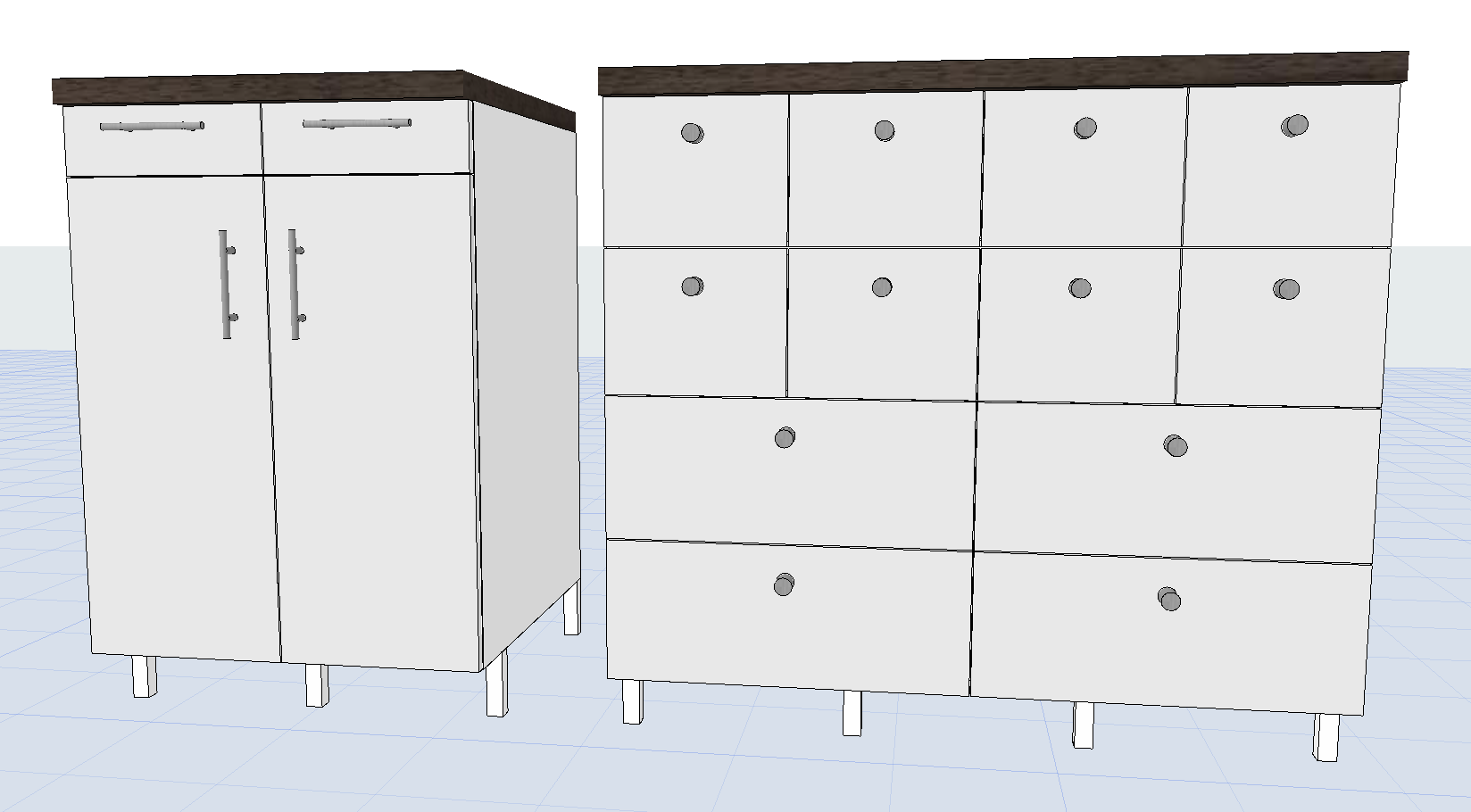

Based on user feedback, the Kitchen Cabinets have improved flexibility and usability.
•Handles/knobs now correctly keep their position after resizing cabinets.
•The anchor of handles have been updated, to more logically link to the edge most appropriate for the door type. This may result in some shifted handles when migrating from previous versions due to these fixes.

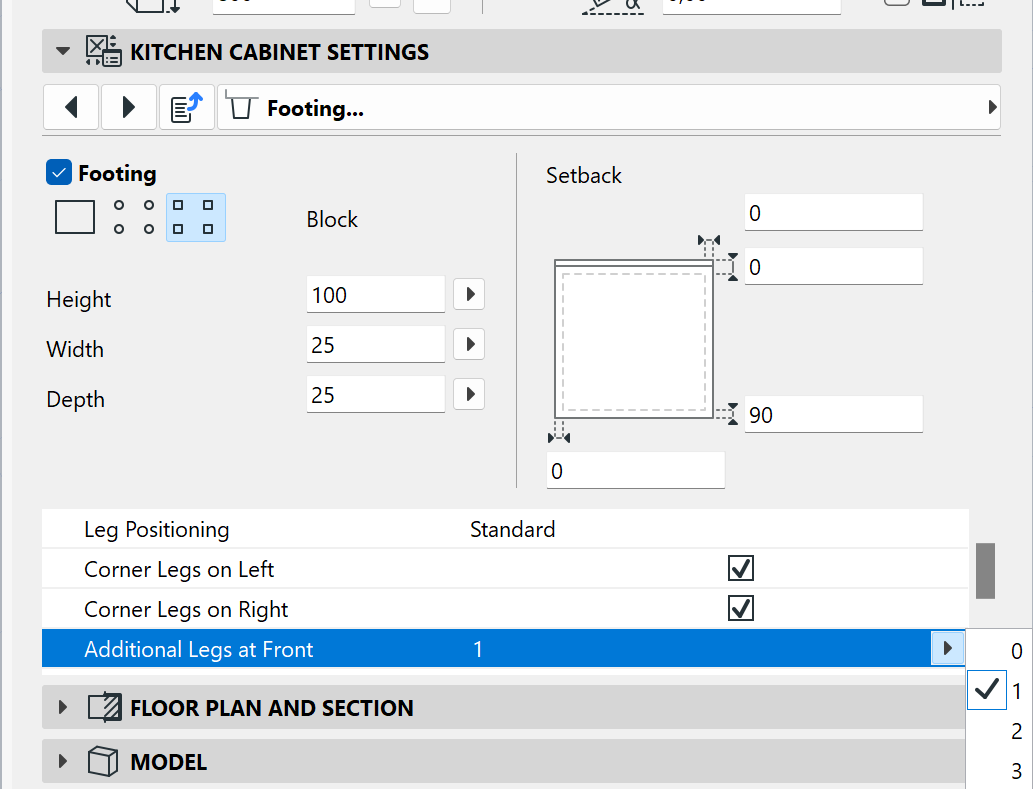

•New ‘Standard’ feet logic has been introduced, with the previous method being kept under ‘Custom’
Feet now reposition automatically when resizing cabinets
Corner Feet can be turned off, to accommodate adjoining cabinets
Set the number of additional Feet between corners feet, per edge type, that are equally distributed
For non-rectangular cabinets, front feet can optionally rotate to align with other feet or to the cabinet’s front edge
For end Cabinets, optionally add legs on the chamfered/filleted edge
•New 3D hotspots allow to graphically position Setbacks
•New options to set the number of Drawers, up to 5 (previously only one drawer option was available)
•Fixed an issue with some handle types that caused the ‘Top Hinged Door’ to flip
