Set Different Arrowheads for Line Tools

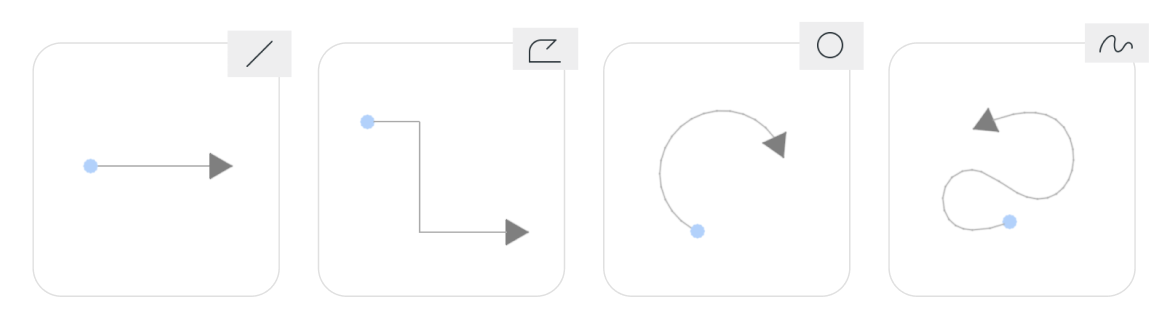

On line-based tools including Line, Arc/Circle, Polyline and Spline: set two different arrowheads for the start and end. For example, you can set a circle at the start, and an arrow at the end.

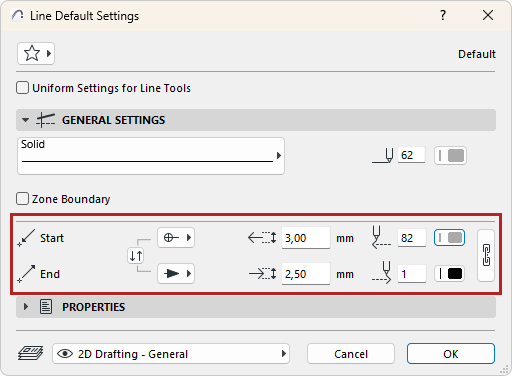

Easier Arrowhead settings in Archicad 29

•Arrowheads can each use their own, separate size and pen settings. (Option to lock the pen and size as needed).

Find and Select option for Arrowhead pen changed to “contains/does not contain” to accommodate multiple pen settings

API extended to support separate arrowheads.

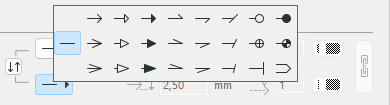

•“None” option available for no arrowheads at all
