Keynote Legend Improvements

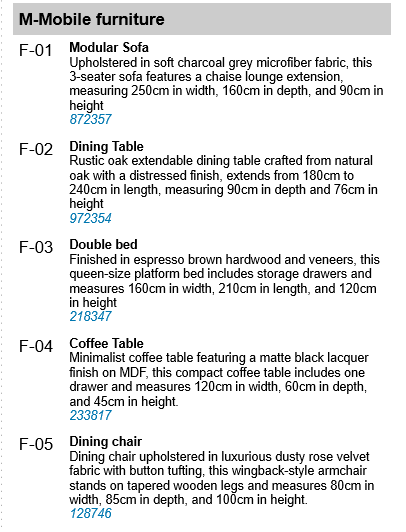

Based on user feedback, Keynote Legend formatting options have been expanded for greater flexibility and customization.

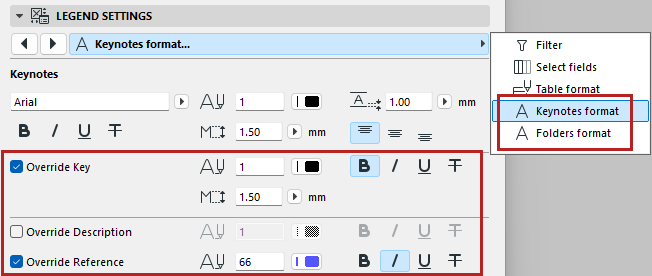

Use separate text formatting for any Keynote data, such as Reference data.

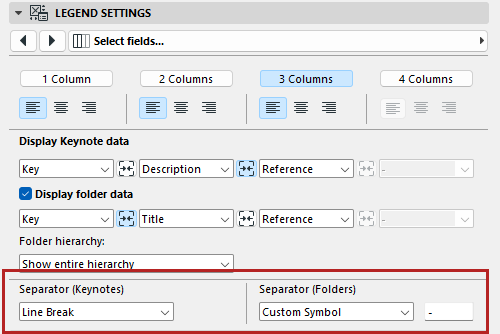

New ways to organize Keynote data when merging columns, to allow data to be separated by line breaks, space or custom character.

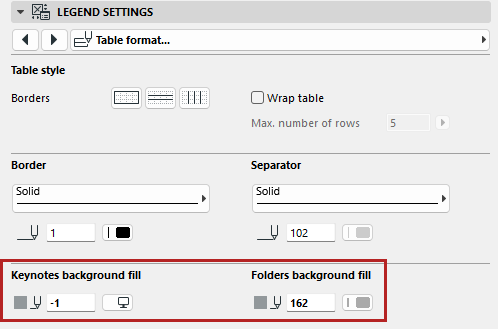

Set any solid background color for Keynotes and Folders separately, including setting a transparent pen.


Additional Improvements to Keynote Legend:

When the Keynote Legend is placed on a Master, and a Layout using that Master doesn’t include any Keynotes, the placeholder text in the Legend will no longer show on that Layout.

When columns are merged, custom formatting is now correctly displayed (previously all merged fields used a uniform formatting).
