•Roof and Shell Settings: Linking and editing Surface overrides together now works reliably and consistently, like other element types. (In previous versions, when these were linked, Surface overrides didn’t edit together as expected.)

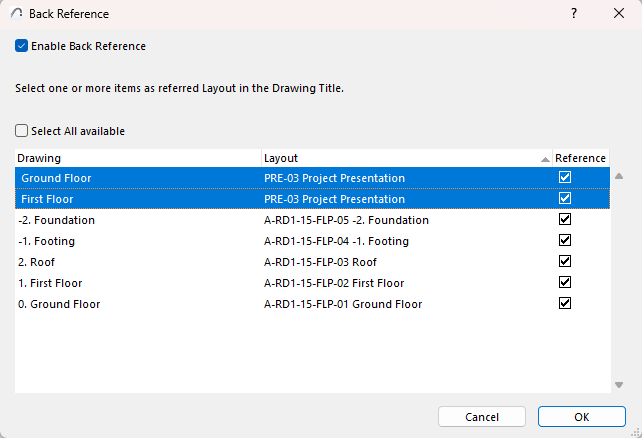

•Drawing Back Reference dialog: Now resizes correctly, and supports multi-selection of items from the list to check and uncheck

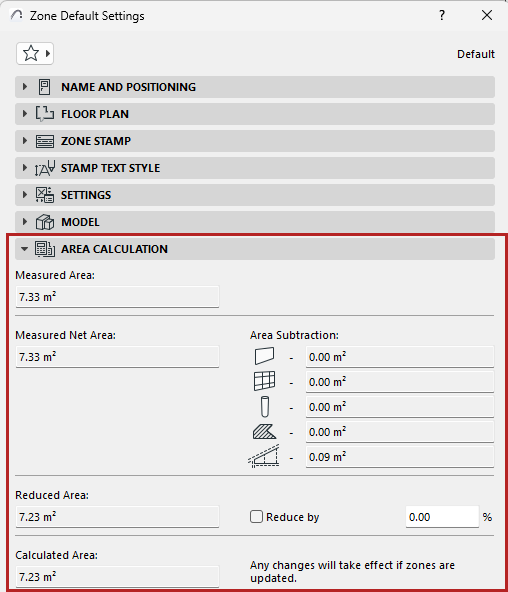

•Updated UI for the Zone Area Calculation panel, for more logically arranged information

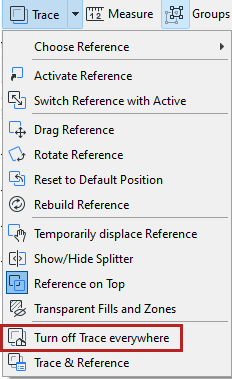

•New command to turn off all Trace References from all viewpoints, which can improve performance in complex projects that have many Trace References enabled
•Fixed an issue in Interior Elevations - “rename” worked incorrectly when the North Elevation was removed.
•Fixed an issue where images on exported PDFs from macOS appeared darker.
•Fixed an issue that caused Door/Window opening contours to disappear when two Doors/Windows were placed in the same location between two different Design Options.
•Improved performance for Collision Detection and IFC export of large complex models in certain circumstances
•In Teamwork, improved handling of hotlink explode when a user lacks permissions to create Keynotes, Properties and Classifications. Also, the warning text is clearer - to help avoid data loss.

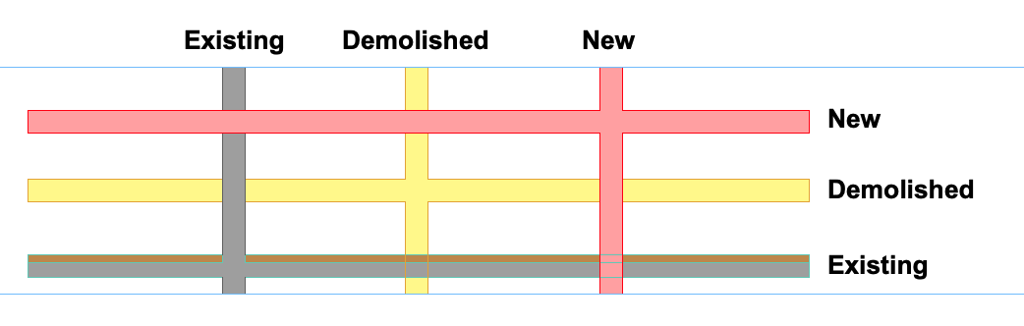

•When using Renovation’s ‘do not intersect' function, the cut and uncut fills of “new” elements will now be shown over “existing”, which are shown over “to be demolished” elements within a Section/Elevation. (In previous versions the order was random.)
Walls and slabs with “Do not Intersect” setting: “New” on top of “Existing”, on top of “Demolished”
With the release of Archicad 29, the Solibri Inside service (Design Checker) and Bluebeam Connection as a separate downloadable add-on will be discontinued.
•Design Checker - The last Solibri Inside bundled with Archicad subscription plans expired on Jan. 23, 2025. The feature will be inaccessible to users of Archicad 27 and 28 as of their next update.
•Bluebeam Connection- the standalone add-on will not be released in the future, since a more integrated solution will be provided through our new Bluebeam Connection add-on as part of the standard package. The new connection will directly connect to Bluebeam's Cloud Studio and to their Revu desktop application, opening up use cases for Mac users as well.
