Easy editing of connection ports

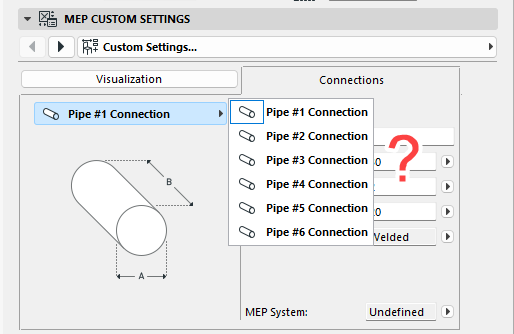

MEP fittings, take-offs, terminals, and accessories can have multiple connection ports - but before you edit their data (for example, change the dimension), you have to know which connection to edit.

TankObject.png   PipeConnectionQuestion.png

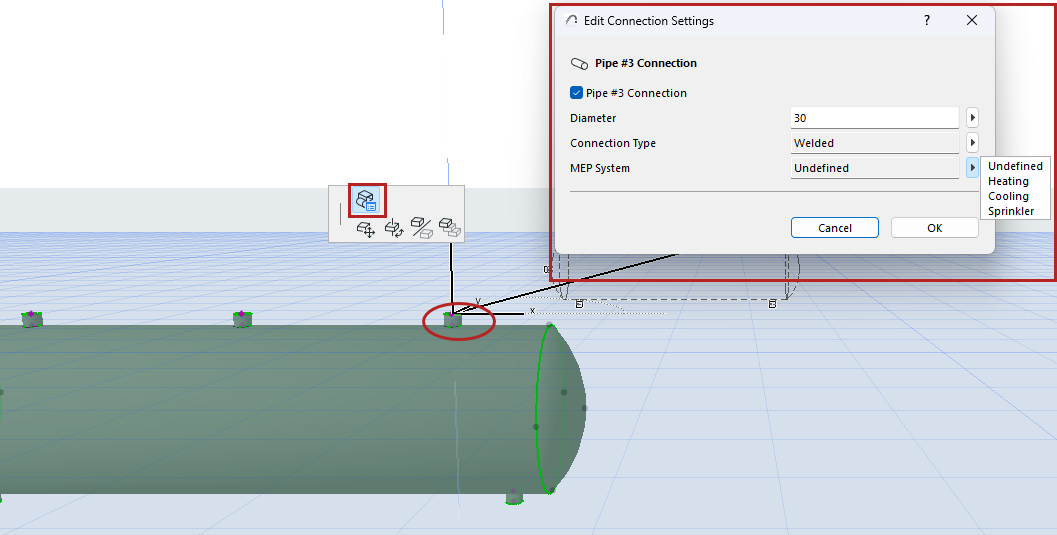

In the latest MEP Designer, just click the connection you need, and edit intuitively in the pop-up:
