Select connected MEP elements or routes

Available with Archicad Collaborate

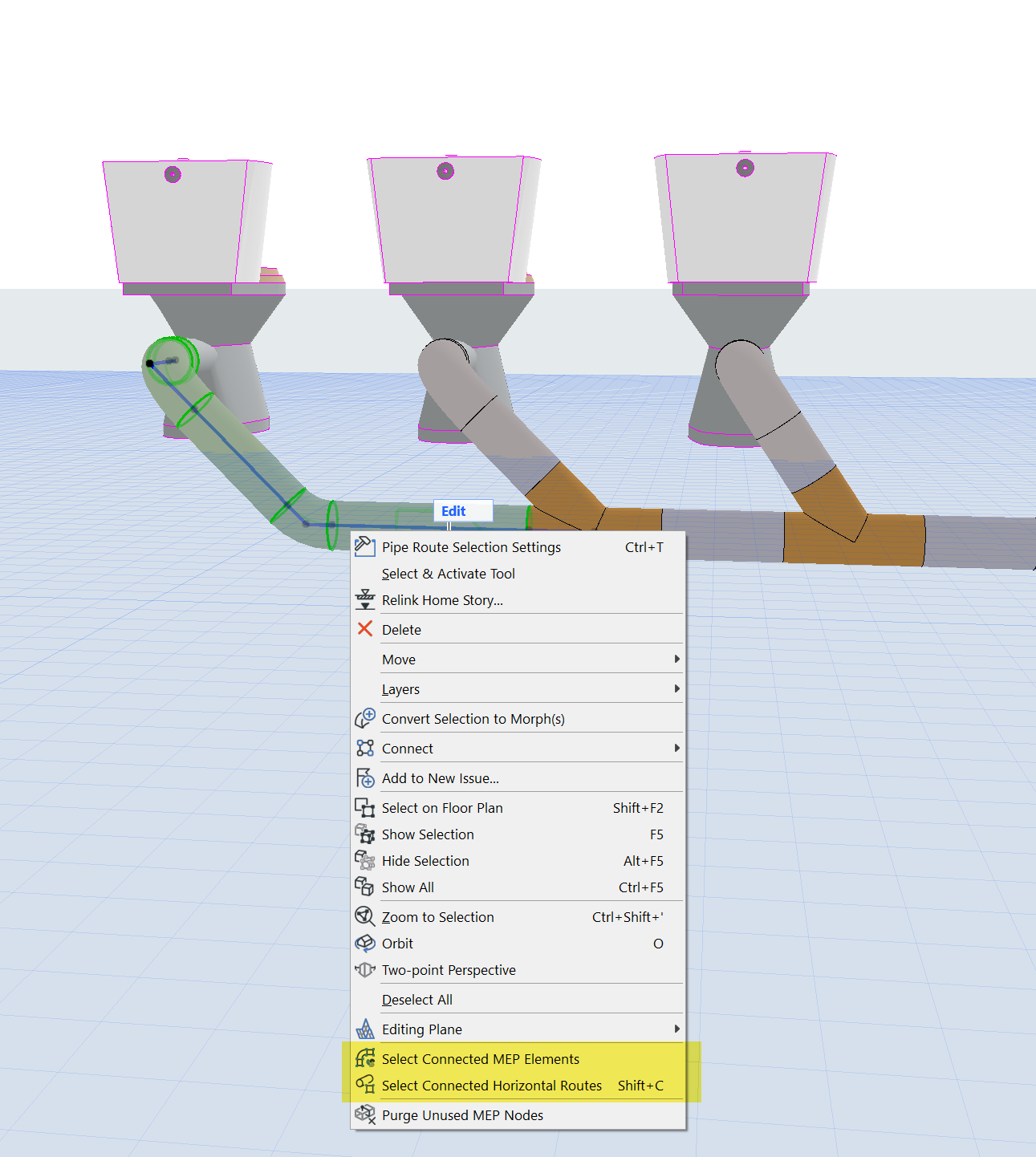

For a selected MEP element, two contextual commands make it easy to also select connected MEP elements or connected horizontal routes.

Both commands are also available from the MEP toolbar:

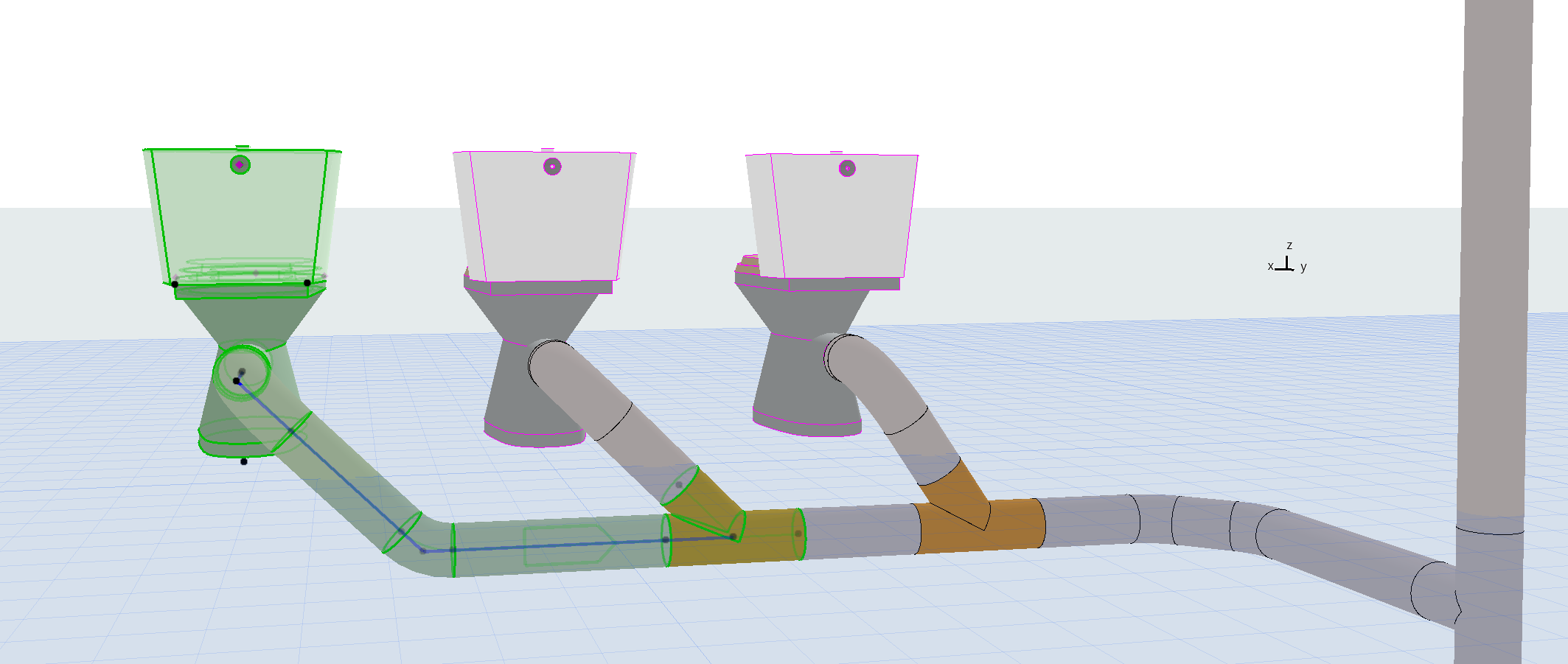

Single selected MEP element - before issuing command

Select Connected MEP Elements

The result of this command: The selected route’s connected fixtures and elements are also selected.


Connected MEP elements all selected

Select Connected Horizontal Routes (shortcut: Shift + C)

The result of this command: additional connected, horizontal routes are also selected.

For example, use this command to change the slope of related connected elements all at once:


Connected horizontal routes all selected
