MEP Calculation Input Data (Duct Route)

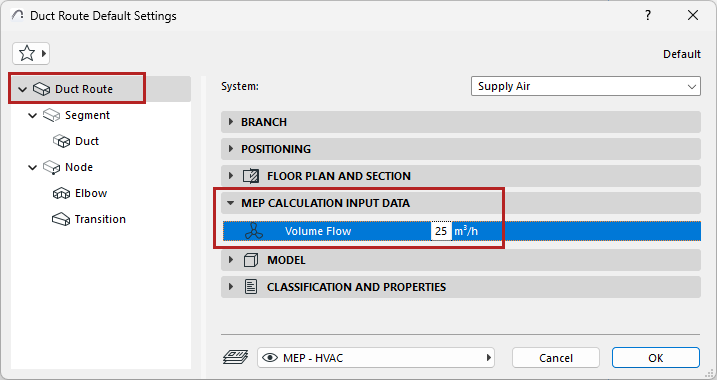

For a duct route with an open end: Specify the route’s Volume Flow.

In early design calculation, the System Browser and Duct Optimizer tool use this information to calculate air flow and resize duct systems.

See MEP System Browser and Duct Size Optimizer.
