Select Archicad Elements in Solibri

Selected elements in Archicad can be selected in Solibri as well.

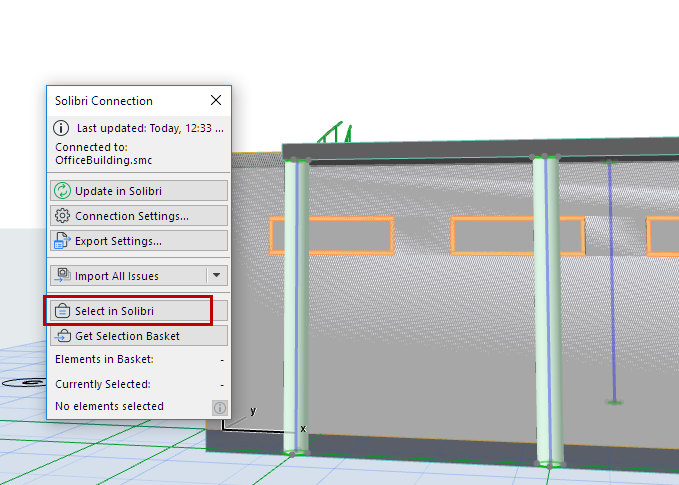

1.Select elements in Archicad.

2.Click the Select in Solibri command on Solibri Connection palette.

A picture containing LEGODescription automatically generated

Solibri’s Selection Basket is filled with the selected elements from Archicad.
