Customize Dimension Witness Lines

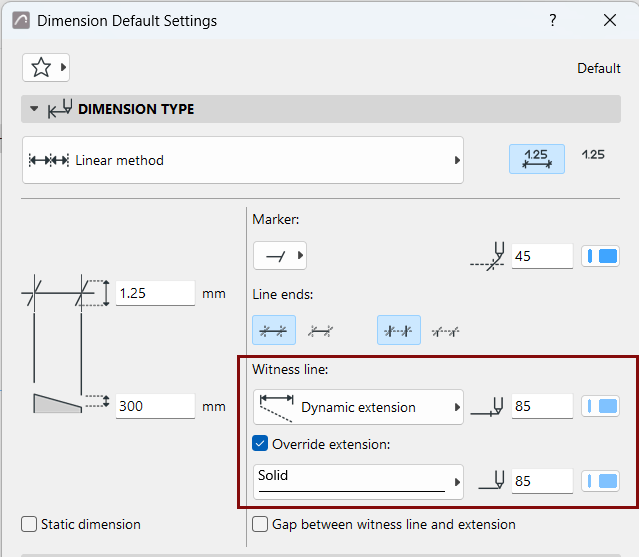

In Linear Dimension settings: The witness line extension can now be customized, to allow for cleaner and more readable drawings.The same new options are available for Elevation Dimensions.

• Updated UI to clarify witness and extension settings



• Set line type of the dimension extension line, such as dotted or dashed

• Set a separate pen for the extension line

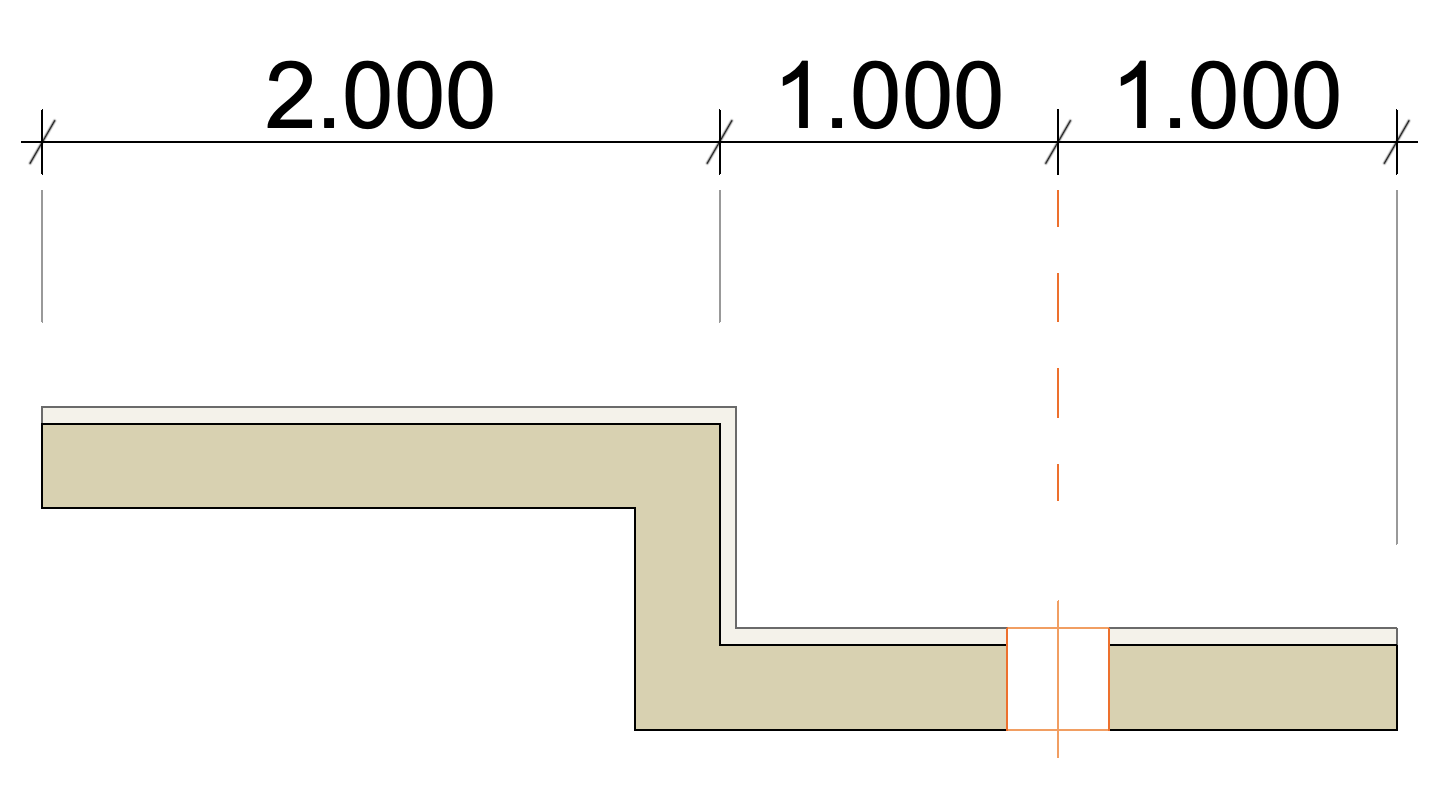

• Set both line type and pen, on a per node basis, to clearly identify and visually separate end dimensions and center dimensions

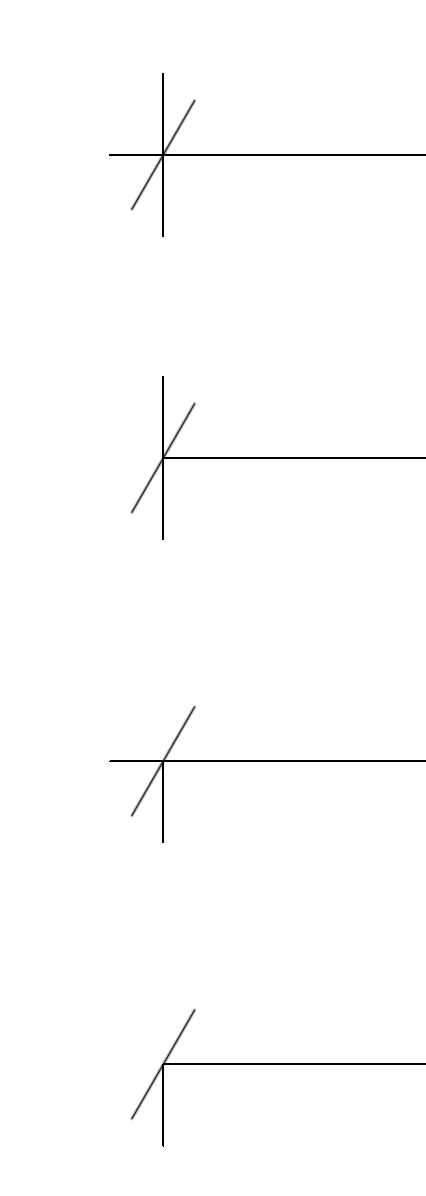

• Marker symbol extension lines can now be further customized, with separate visibility handling of the line ends (the extension tick above and at the ends of the marker symbol)
