Flip flow direction

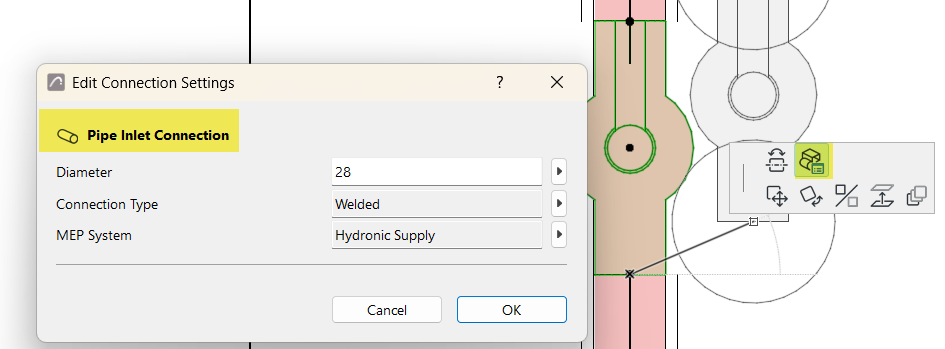

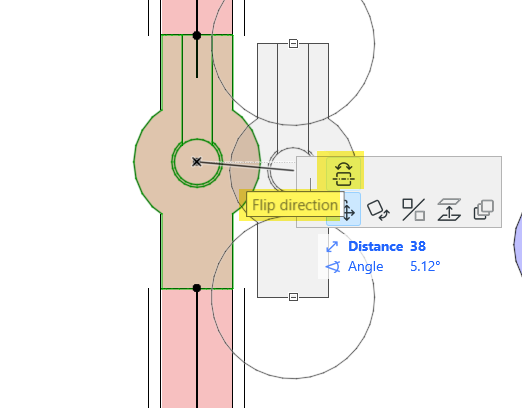

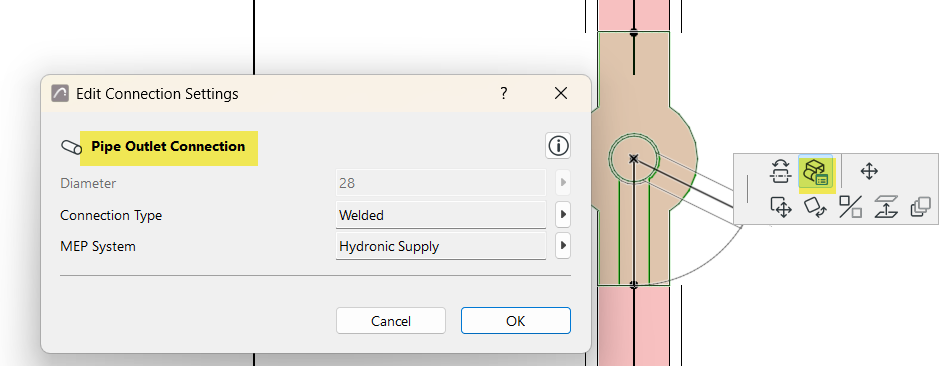

“Flip direction” context menu command now works on all relevant elements, ensuring correct inlet/outlet settings and calculations

Parent topic: Rotate and flip accessories, fittings, and terminals
