Hydronic system calculation - Cooling Systems

Comprehensive MEP design: Support early-stage planning plus accurate documentation of cooling systems, together with heating and ventilation.

• Cooling systems are now integrated into the mechanical design environment

• Calculate hydronic cooling systems or 4-pipe heating and cooling systems

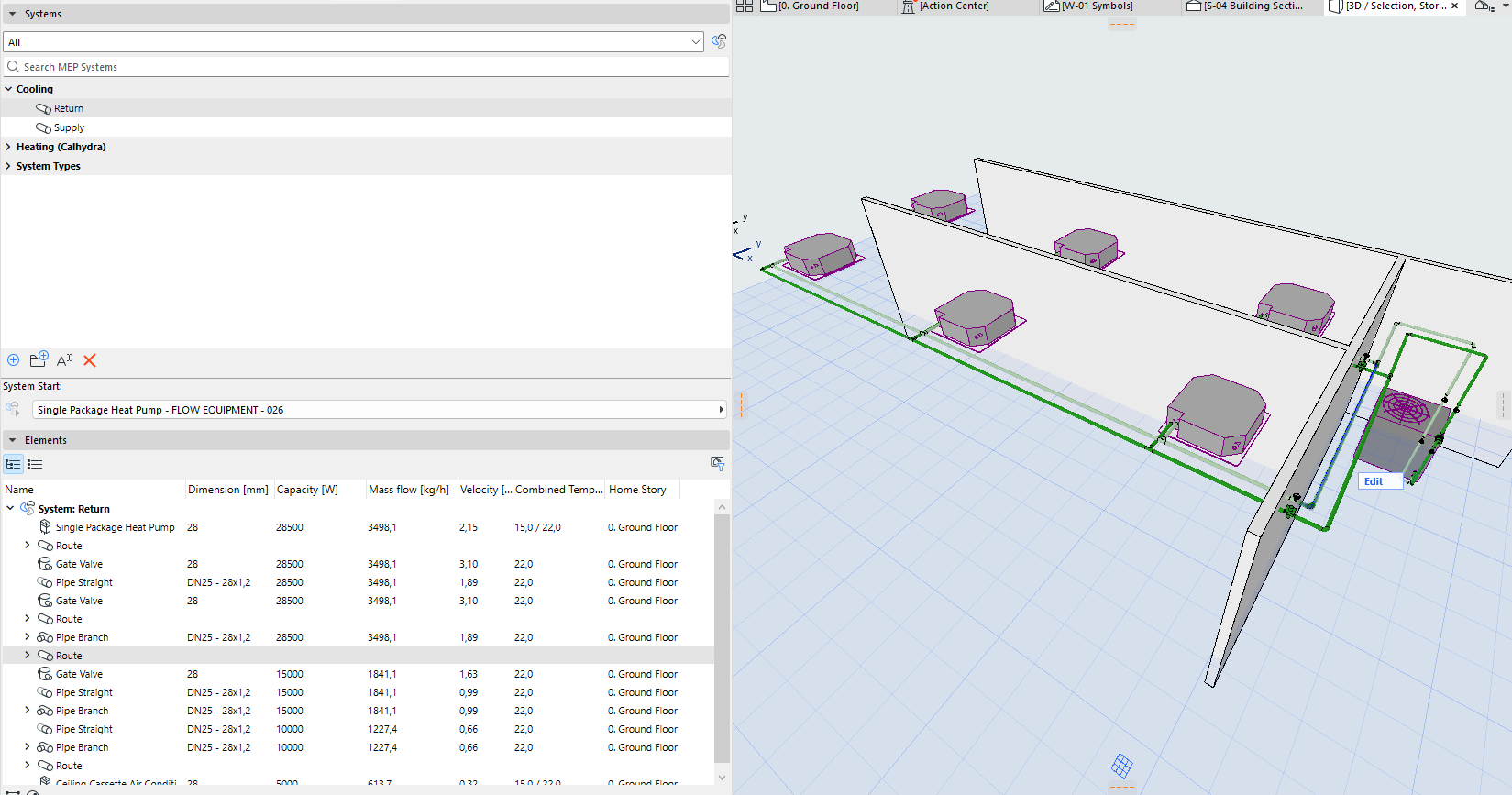

• Hydronic calculation and Hydronics size optimizer handles cooling as well as heating

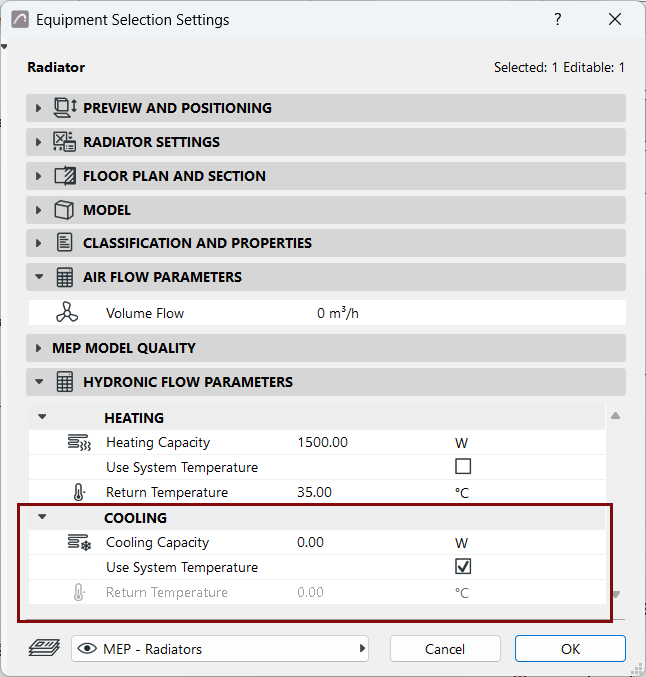

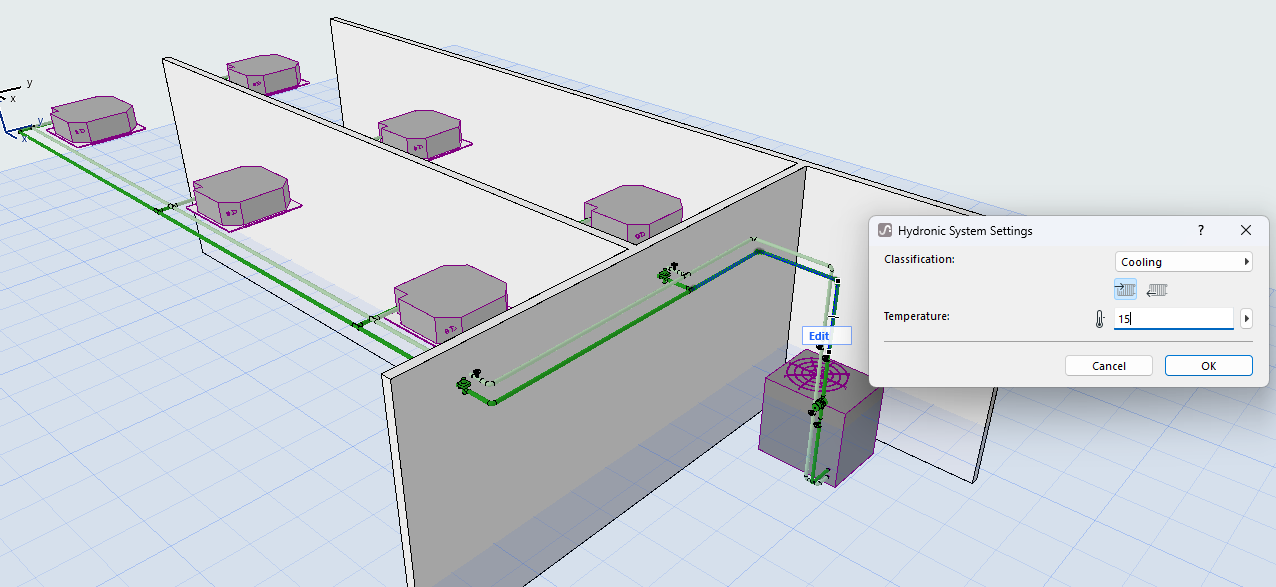

• Add cooling design criteria and specify cooling system temperatures



• Elements with ports for both heating and cooling, and when applicable, also ventilation (added for equipment)
