Migrating Keynote legends

As of Archicad 30, the settings for wrapping a Keynote legend (dividing it into sections) have been expanded.

If you clicked "Wrap table" in your older-version project, the appearance of your Keynote legend will change.

In the newer-version project: Go to Keynote Legend Settings - Table format and choose a preferred wrapping option from the Units pop-up.

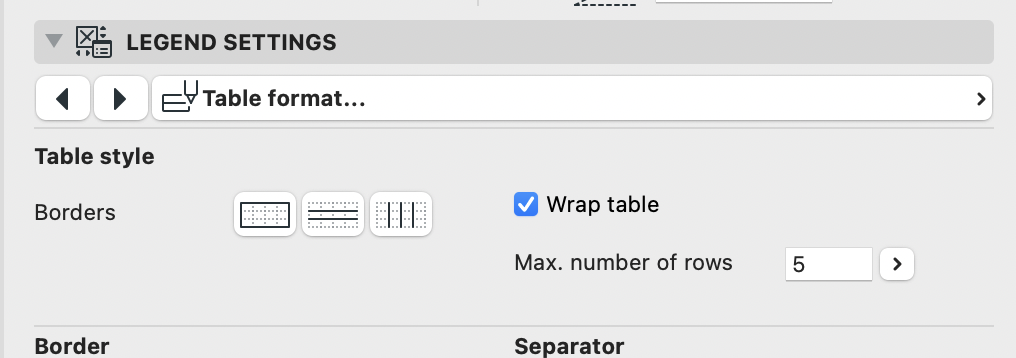

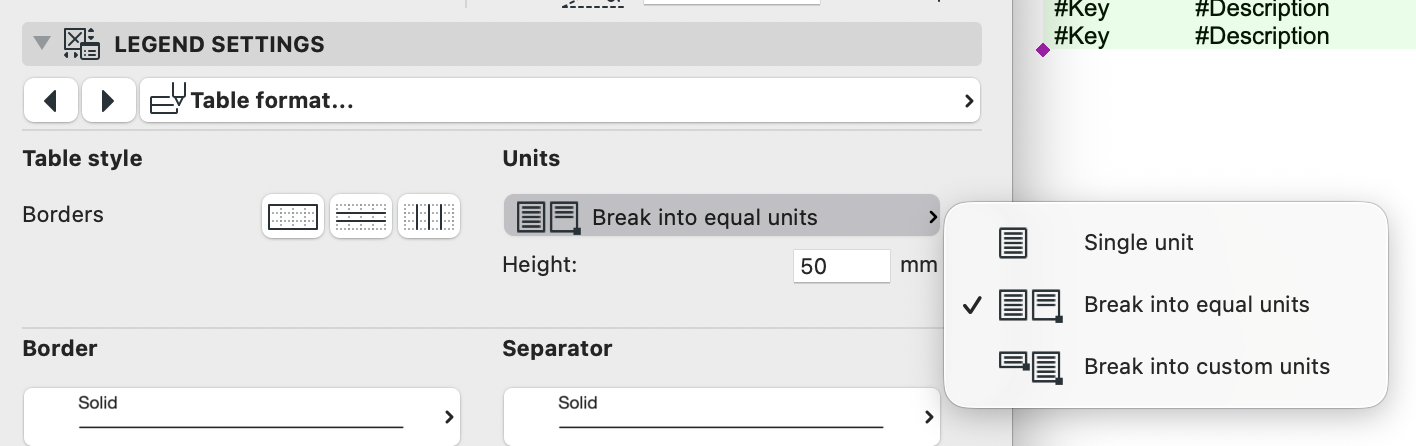

Figure 1. "Wrap table" option (Archicad 29)	Figure 2. "Units" option (as of Archicad 30)
