Apply a Favorite

Apply a stored Favorite to selected element(s), or apply it as default Tool settings (if nothing is selected).

Favorites can be applied from three different locations, each shown below:

  • Favorites Chooser in the Toolbox or Info Box
  • Favorites Palette (Window > Palettes > Favorites)
  • Tool Settings Dialog box

    For information on Favorites controls in Library Part tool dialog boxes, see Settings of Library Part Elements.

In every case, select the Favorite, then double-click to apply to a selected element.

Or select a Favorite and click Apply (button or context menu).

Text-type Tools

Text tool Favorites can be applied to any text-type items when Dimensions, Labels, and Fills with Area Text are selected.

Line-Type Tools

Favorites of any of the four Line-type tools (Line, Arc, Polyline, Spline) can be applied to any of the other Line-type elements. For example, apply a Line Tool Favorite to a selected Arc.

From Favorites Chooser (Toolbox/Info Box)

This is the fastest way to apply Favorites to a selected element as you work.

  1. Access the Favorites Chooser by doing one of the following:
    • Click and hold the Tool icon (Toolbox only)
    • Click the arrow from the Toolbox or Info Box
      Note: If no Favorites are defined for a tool, the Chooser will not appear from the Tool Box.

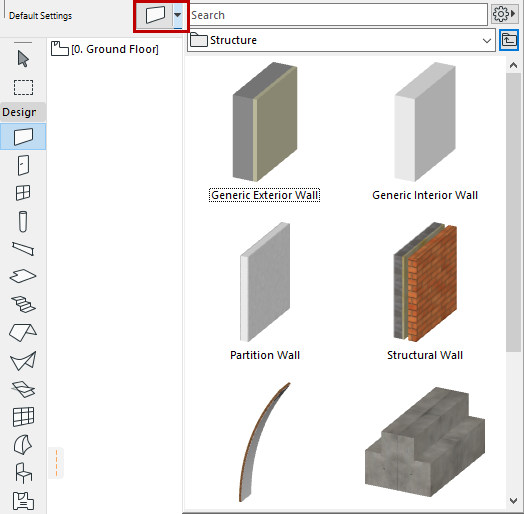

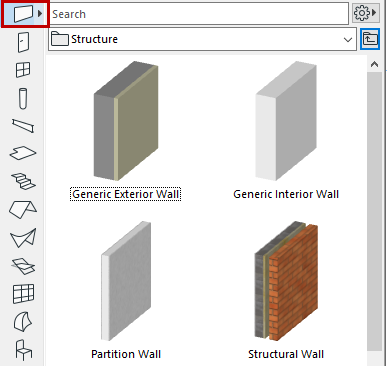

      ApplyFavoritePopup.png     InfoBoxFav.png

      Note: To switch on the fly between the 3D and 2D preview of any Favorite, hover your cursor over the preview and press Shift.
  2. Search or browse, then double-click the desired Favorite.

    See also Search Favorites.

    Note: The folder tree view is not available from the Favorites Chooser.

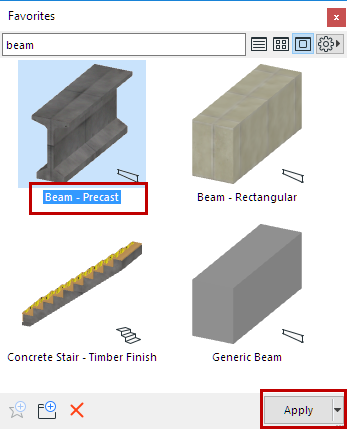

From Favorites Palette

From the Favorites Palette (Window > Palette > Favorites), search and browse, then do one of the following:

  • Double-click the desired Favorite, or
  • Select a Favorite and click Apply

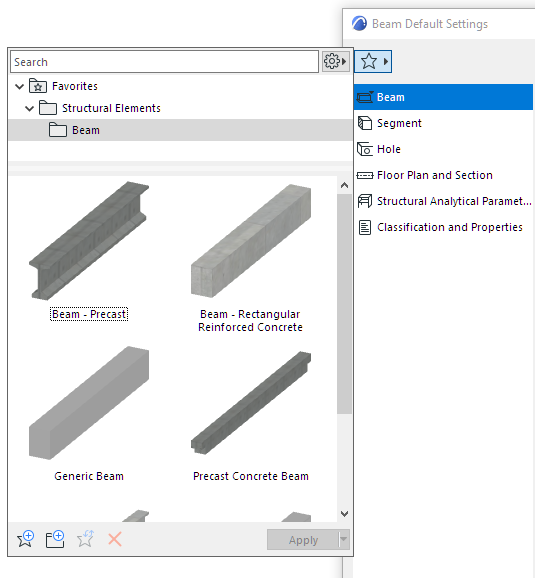

From Tool Settings

  1. Open the Tool Settings dialog box.
  2. Click the Favorites (star) button at top left.

  3. Search and browse, then do one of the following:
    • Double-click the desired Favorite, or
    • Select a Favorite and click Apply

      See also Search Favorites.

  4. Click OK to close the Tool Settings dialog.

Apply a Different Transfer Set

To see the list of the project’s stored Transfer Sets:

  • Use the Apply button’s pop-up, or
  • Click Apply Transfer Settings from a selected Favorite’s context menu

The Transfer Set defines the list of parameters applied with the Favorite.

Change to a different Transfer Set, if needed: Click on any Set name to apply it.

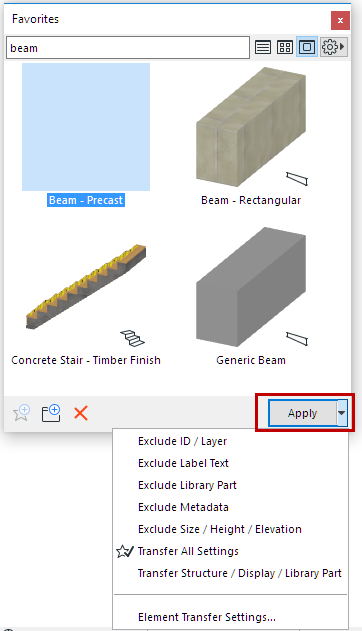

ApplyPopup.png     DefaultFavoriteTransferApply.png

  • Define and manage Transfer Sets here: Element Transfer Settings
  • One of the sets is tagged (checked star icon) as the default to use when applying Favorites.
