Move Nodes

With the Move node icon of the pet palette, you can reposition the node of a polygon type element.



Also, the Move Node command is used to stretch objects, doors and windows.

See Stretching Objects.

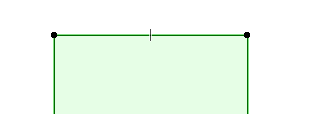

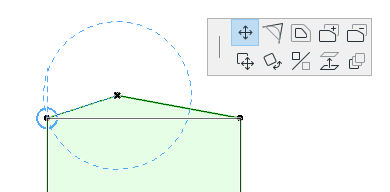

• You can eliminate a node by merging it into one of its neighbors.
