Create a Multi-Segment Column

Set up a Column that consists of multiple segments, with a configurable “Join” component between them.

To create Column segments, use either the Settings dialog or graphical interactions. Both methods are described below.

Watch the Video

Note:

  • Each segment has its own Classifications and Properties settings and its own Element ID. However, Category definitions (e.g. Renovation status) are inherited from the element level.
  • Find & Select, Labels, Info Box, and Interactive Element Schedule fields can use segment-specific data

Watch the Video

Use Column Settings

  1. Open Column Settings and go to the Segment page.
  2. Click the Multi-Segment column icon.
  3. Click Add to add as many segments as needed.
    • A “Join” component is automatically added between each segment.
  4. View the Structure list to see segments and Joins. Select or multi-select to edit.
  5. View the preview. The segment currently selected in the list is highlighted.

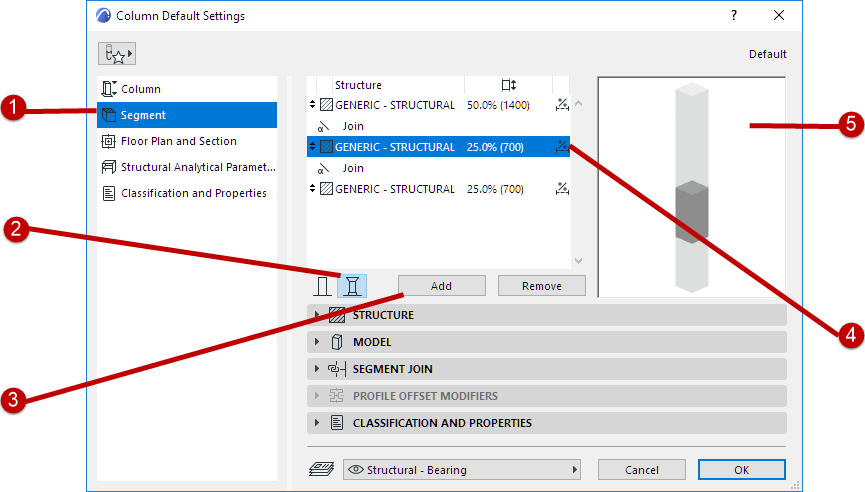

    Figure 1. Multi-Segment Column

Create Graphically

  1. Select a Column in the 3D window.

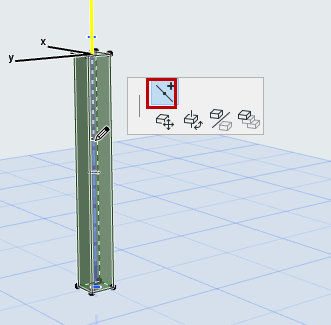

  2. From the pet palette of the Column axis, choose Split Segment.

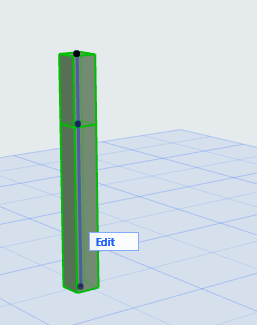

  3. Click anywhere on the Column axis: The Column is split at that point into segments. Repeat to create more segments as needed.


Related Topics:

Delete Column Segment or Beam Segment
