Intersecting Elements That Don’t Clean Up

  • Wall-Wall intersections clean up only if their reference lines intersect. (Collision is not supported.)

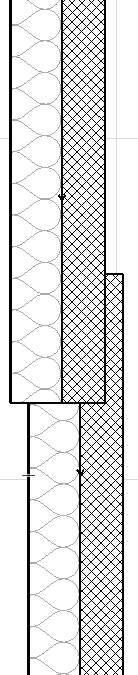

On Floor Plan

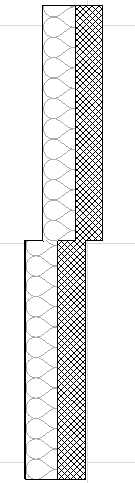

In Section
  • Column-Column intersections do not clean up when they collide.
  • Use a profiled column or the Merge Profiles function to achieve special Column intersections.
  • When placing a Column that will intersect a Composite wall, your choice of Geometry method – wrapped or unwrapped – will affect the display of the wall/column in the Floor Plan.
  • Slab-Slab intersections do not clean up when they collide.
  • Mesh is not supported.
  • Objects are not supported.
