Element properties for Design Options

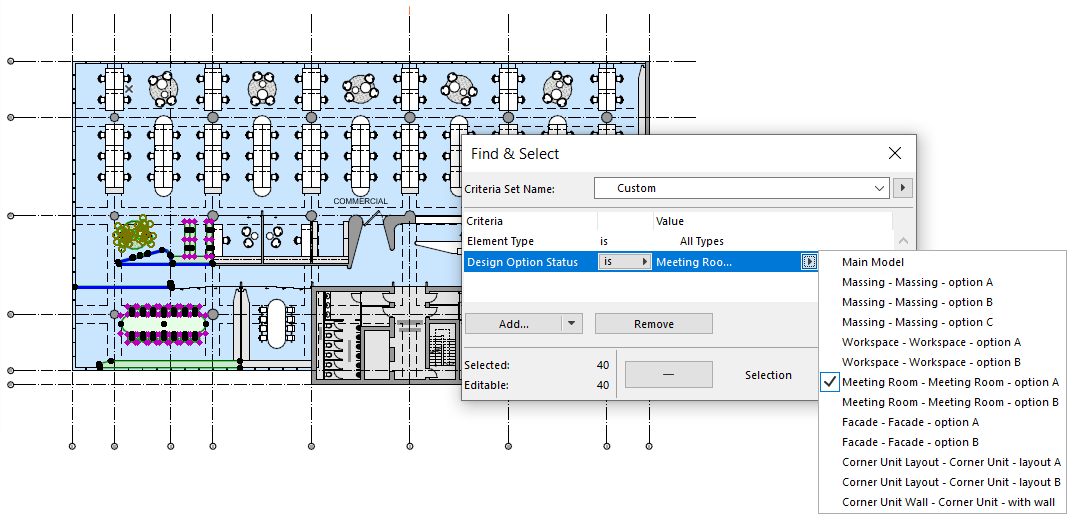

Use the following properties to find and manage element data by Design Option:
- Design Option Status
- Design Option Set
- Design Option Missing (see Design Options in Teamwork)

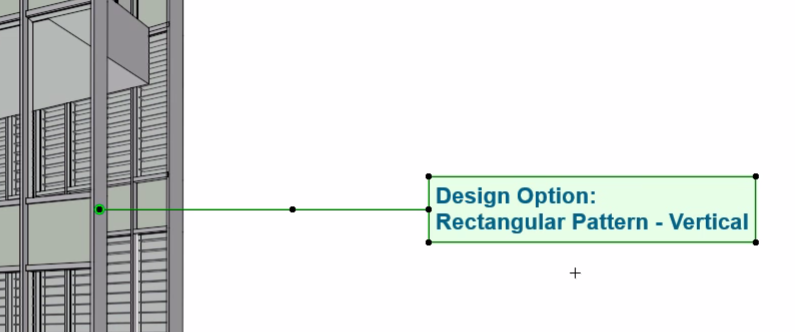

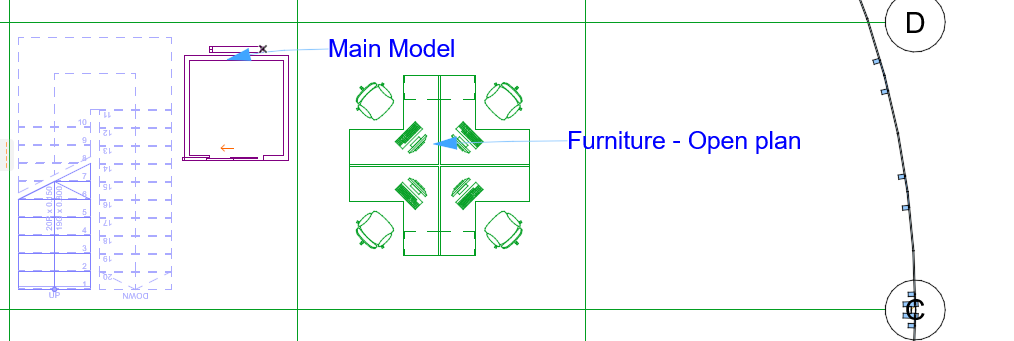

The following additional parameters are available in Labels and Schedules:

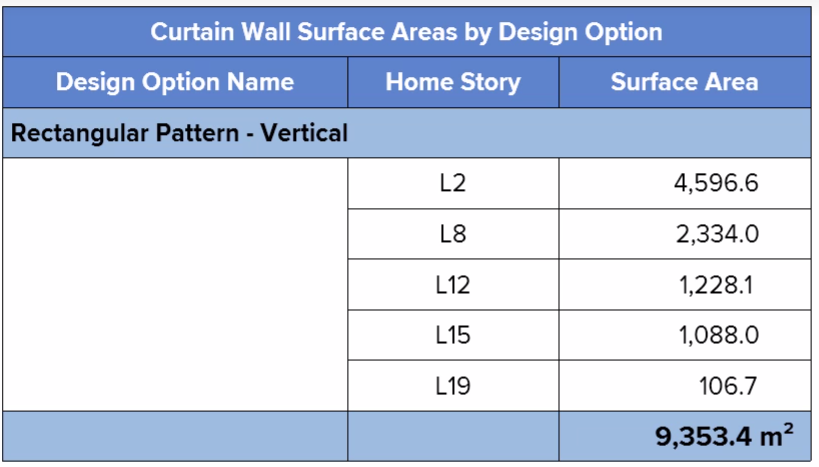

Design Options in Element Schedules
Element Schedules can list elements by Design Option. For example, it’s easy to create Option-based quantities lists (such as surface areas or number of bricks.)
To compare the results, create a schedule for each Design Option, then save each schedule as a view.
