Merge Design Option to Main Model

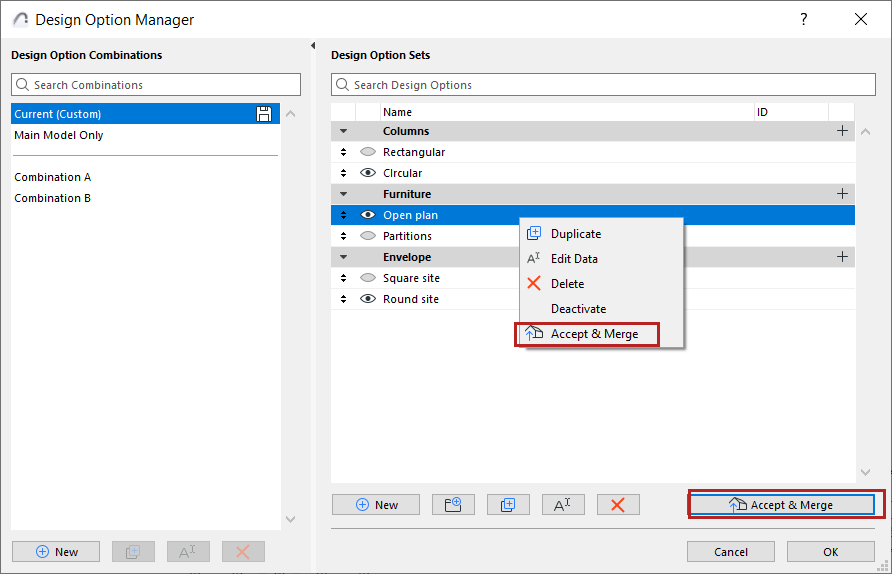

When a final Design Option is chosen and good to go, select the Option in Design Option Manager, and click Accept & Merge. (Use the command button or the context menu.)

You can only select and merge one Option at a time.

  • Elements of the selected Option are now merged into the Main Model.
  • The entire Option Set is now deleted, together with all its Options.
