Create Design Options and Sets
- Open the Design Option palette. (See Open Design Options palette)

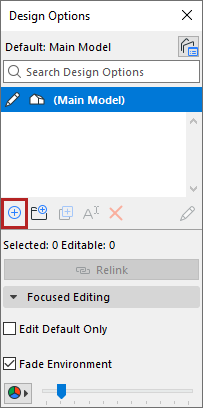

- Click the Add button to create your first Design Option. A new Design Option Set is also created automatically.
Rename, duplicate, delete Options or Sets

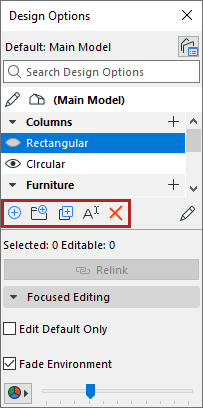

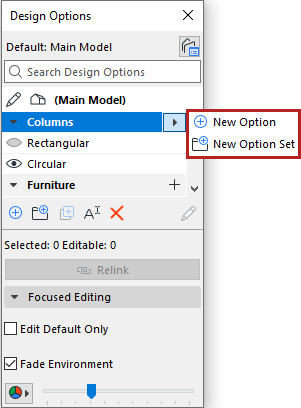

Use the command buttons as well as context menus in the Design Options palette.:
Group your options in logical Design Option Sets (for example, “Bathroom layouts”).
- As you create new elements, they are automatically added to the “default” Design Option. See Set a default Option.
- Don’t forget that you can add 2D elements to your Design Option. See Add 2D elements to Design Options
- To work with Doors, Windows, and Skylights: see Doors, Windows, and Skylights in Design Options.
