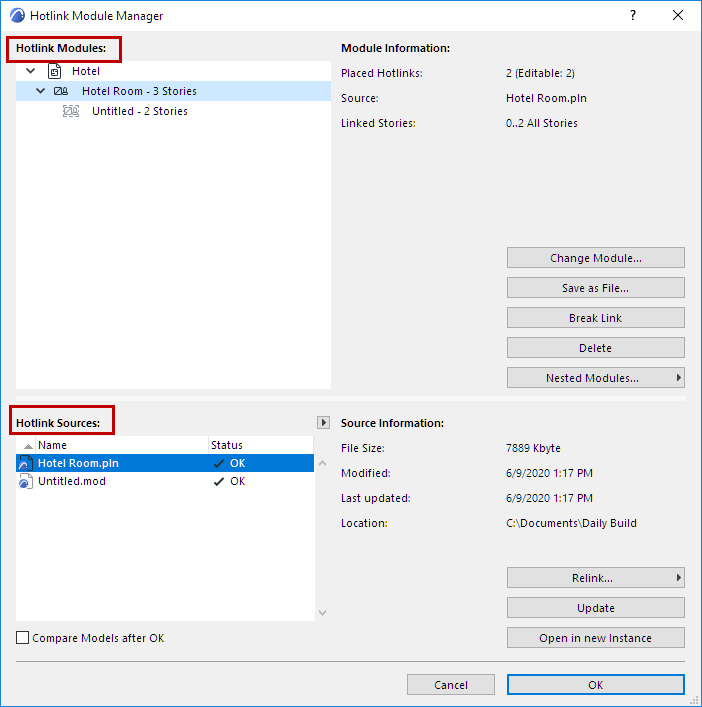

Hotlink Module Manager

Module Information

Select any module in this list. Module Information includes:

• the number of placed Hotlinks from this module
• the name of the source file
• the linked story (or stories) of this module.
• Conversion Info
• For IFC-based Modules: the Template and Translator files, and the template file’s location
• For Rhino-based Modules: import options for this module (e.g. layer and surface conversion)

You can also hover the cursor over a listed Module to see information about it, including the module’s location in the host file.

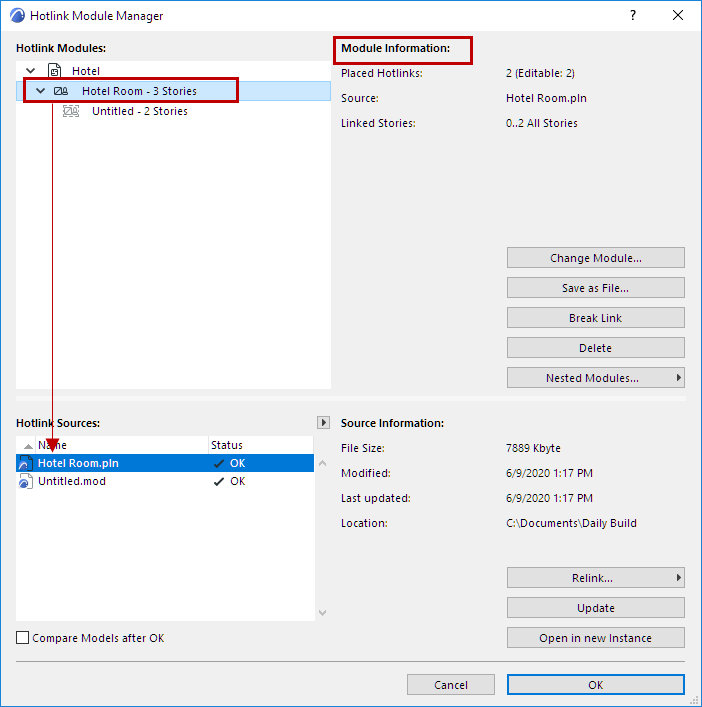

Note that selecting a module in this list highlights the name of its source file in the “Hotlink Sources” list below.

Change Module

To replace the selected module with a different one, click Change Module.

The appearing Select Hotlink Module dialog lists the available Hotlink Modules of this project. Select one to change the module.

See Select Hotlink Module.

Save as File

See Save Hotlink as File....

Break Link

Check this box to break all the Hotlinks of this module and embed their elements into the host project. They will be regular editable elements, grouped together but no longer part of a module and no longer linked to any other source file.

This command is not effective on Hotlinks which are on a locked layer.

See Break Hotlink (Embed Elements).

The Break Link function can be helpful if, for example, a project is nearing completion and you want to create a few internal renderings. You can save a copy of the project visualization purposes: In the copy, you use Break Link to embed all the hotlinks of a module. This allows you to access all of the elements individually, so you can use Surface Painter much more easily.

Delete

Deletes the Hotlink Module and all of its placed Hotlinks from the project.

Hotlinks or elements which are on a locked layer will not be deleted.

Nested Modules (Hotlink Module Manager)

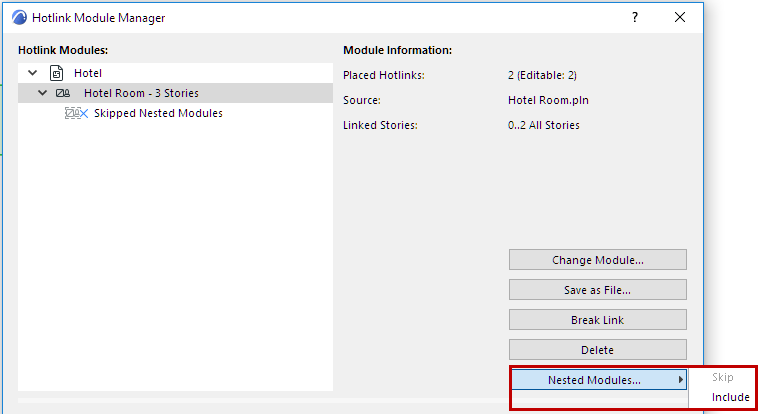

Nested Modules (if any) are listed in the Hotlink Module Manager according to their location in the module hierarchy. Use the Nested Modules pop-up menu to skip or include them in the placed Hotlink:

• Skip: The nested modules in all Hotlinks of the selected module will be skipped (they will not be shown on the Floor Plan). They will, of course, still be present in the source module.
• Include: All nested modules in all Hotlinks of the selected module are shown.

To re-display a skipped nested module, select its parent module again from the Hotlink Module Manager, then choose Include from the Nested Modules pop-up.

If you select a nested module in the Hotlink Modules list, you cannot change or break the Hotlink (these commands and the module name itself are grayed), but you can save it as a new file.

Note:

• IFC- or Rhino-based Modules cannot have nested Modules. However, IFC- or Rhino-based Modules can be nested inside a PLN hotlink.
• To skip or include Nested Modules for any single Hotlink, use Hotlink Selection Settings.

  See Hotlink Settings.

Hotlink Sources

Lists the source files of the Hotlink Modules in this project, by Name and Status.

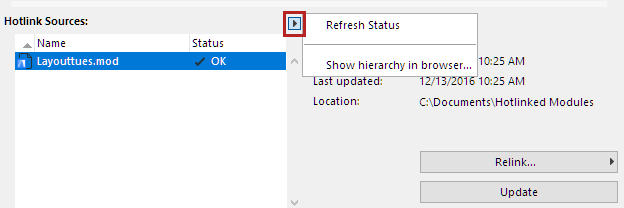

• Click the pop-up arrow to refresh the Status as needed.
  Note: By default, the program automatically checks the status of all Hotlinks each time you open Hotlink Module Manager. If this process slows down your work, uncheck the “Automatically Check Status” box at Options > Work Environment > Data Safety and Integrity.





  See also Hotlink Source File Status Messages.

• To sort data by column, click the headers
• Use the splitter bar to edit the column widths
• Select any file in this list to view, on the right:
• File size: Size of the source file.
• Modified: Last time the source file was modified (at its Location. The path is shown below).
• Last updated: Last time the source file was updated (in the current host project). If this date is older than the “Modified” date, your source is out of date and should be updated.
• Location: Path of the source file.

For any selected file in the list, you can do the following operations:

Relink

Update

Open in New Instance

Relink

Use Relink if any of your Hotlinked Sources are shown with “Missing” status.

In the appearing “New Hotlink” directory dialog box, provide the location of the Hotlink Source (which is probably missing because it was moved to a new location.) As long as a Hotlinked Source is missing, the program cannot update its module instances.

All Hotlinks based on the original source will now be replaced, based on the new source file.

If the new source file has a different story structure than the host file, you will be warned that some dimensions and labels may be lost as a result of relinking.

Update

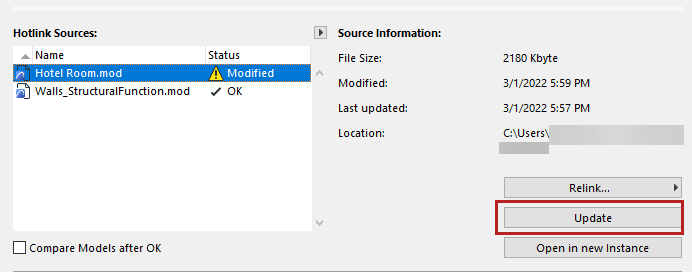

If the source file of a Hotlink module has been modified at its original location, its status in the Hotlink Sources list is shown as “Modified.” You must update the source file and thereby update all of the module’s placed Hotlinks: Select the source file and click Update.

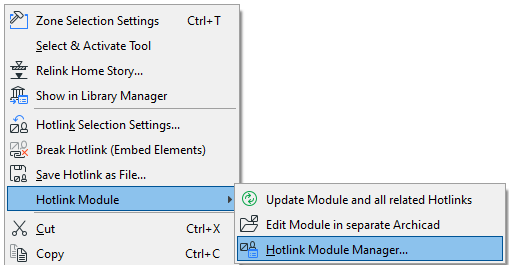

This command is also available from the context menu of a placed Hotlink, as: Hotlink Modules > Update Module and All Related Hotlinks.

See Hotlink Update.

Update, then Compare

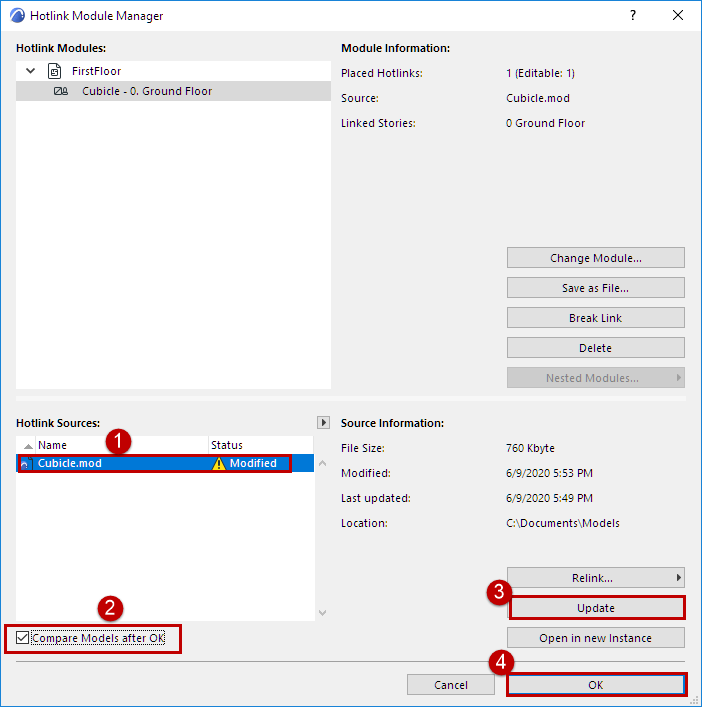

When updating a Hotlink Module, you can launch Model Compare in one step, which helps you visualize exactly what has changed as a result of the update.

See Compare Archicad Models Before and After Hotlink Update .

Open in New Instance

Opens the selected source file in a new instance of Archicad .

See also Edit Module in Separate ArchicadMEP Designer.

Hotlink Source File Status Messages

• OK: This Source file’s modules are up to date.
• Modified: Source file has been changed. To update the modules in your project that originate in this source file, you must use Update.
• Missing: You have placed modules from this file in your project, but the source file can’t be located. Use Relink to define the missing source file location.
• Not Accessible: The source file is a legacy Teamwork project located on a BIMcloud. You do not have access to this source, because you are using either a Demo version or a non-Teamwork network key.
• Legacy: Legacy source files are those saved in an Archicad version prior to Archicad 17. To enable these modules to be updated, you must first open the legacy source file and re-save it in Archicad version 17-26.
