Installation

In order for the Autodesk Forma Connection to work, it must be installed both within the Autodesk Forma environment and as part of Archicad. Please follow these steps:

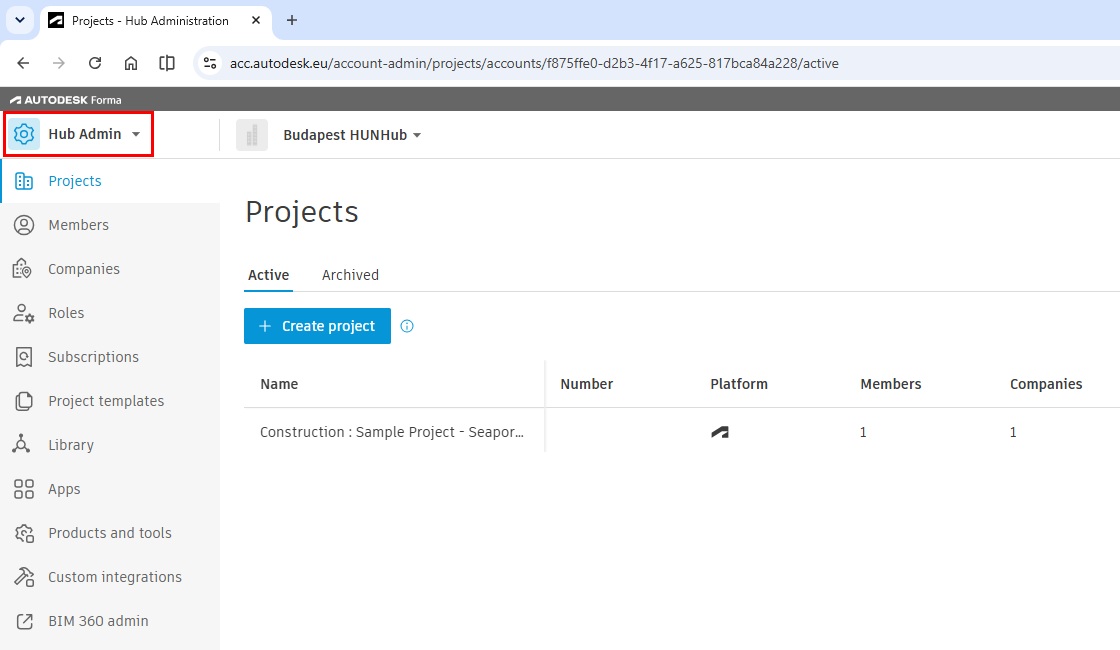

1. Log into Autodesk Forma and go to the Hub Admin page.

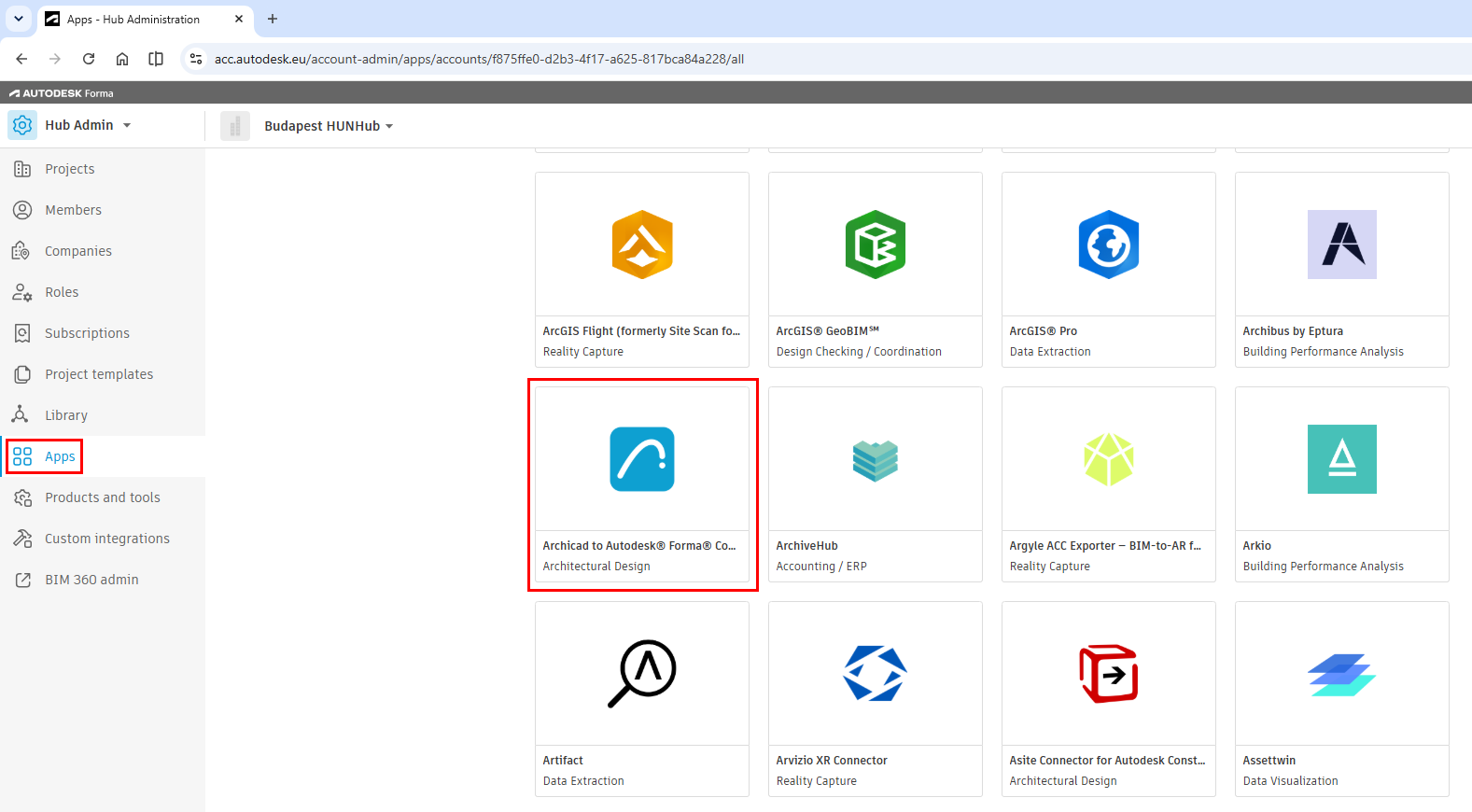

2. On the left, click Apps to display the list of apps. Then click the Archicad to Autodesk® Forma® Connection app.

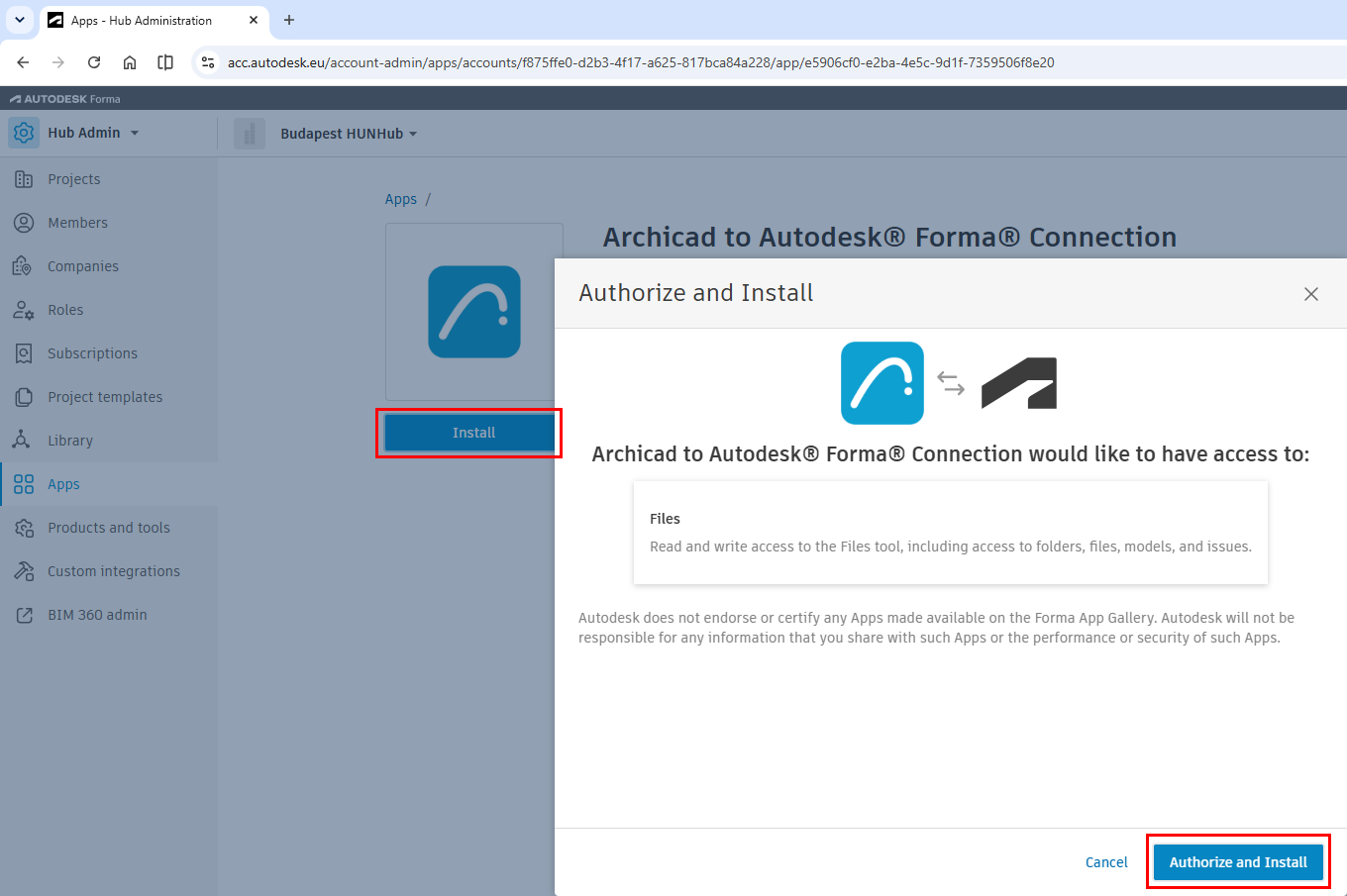

3. When the app opens, click Install. In the appearing dialog, click Authorize and Install to install the Forma side of the Connection.

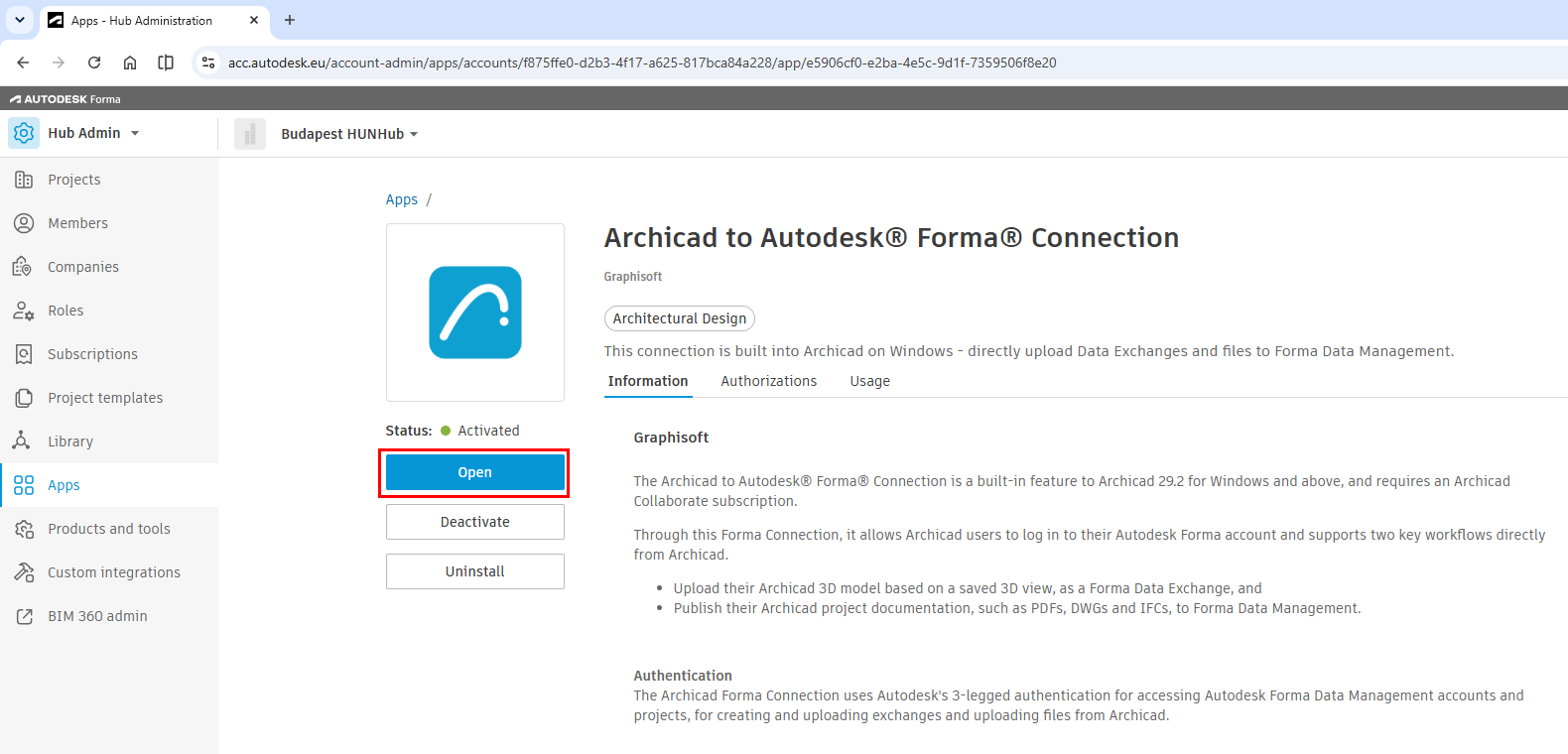

4. After the installation is complete, the app’s page shows its status as 'Activated'. Click Open to go to the Graphisoft Downloads page.

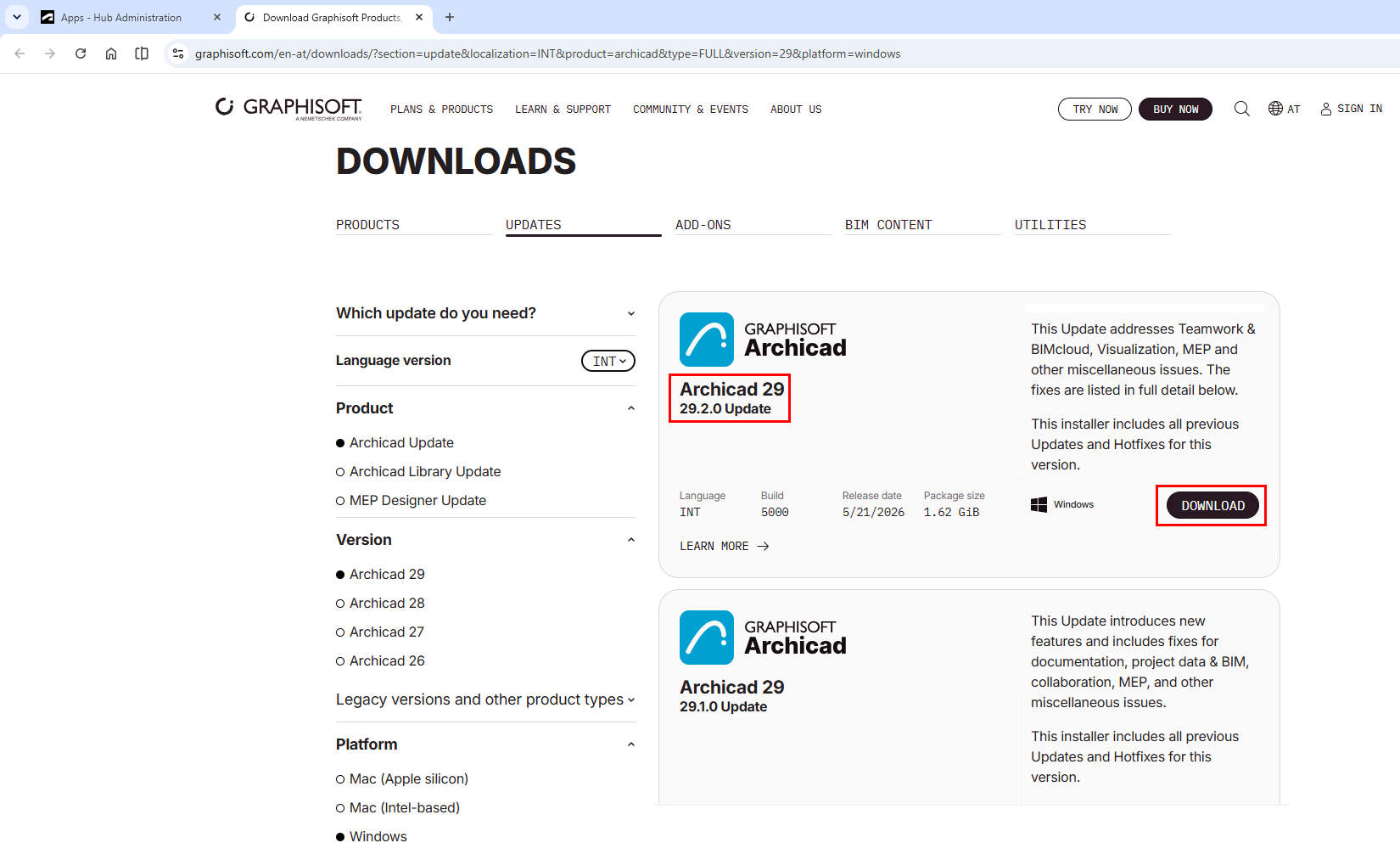

5. Download and install the Archicad 29.2.0 Update (or later). The Archicad to Autodesk® Forma® Connection is part of the default Archicad installation.
