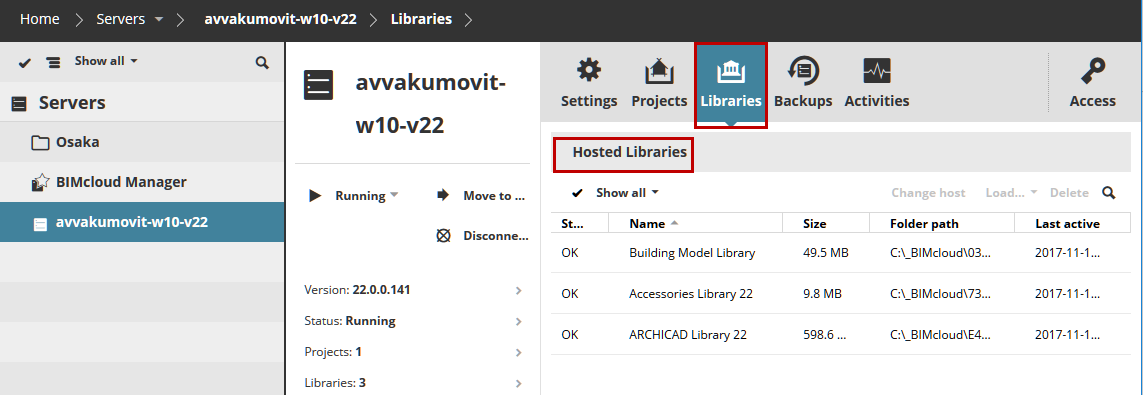

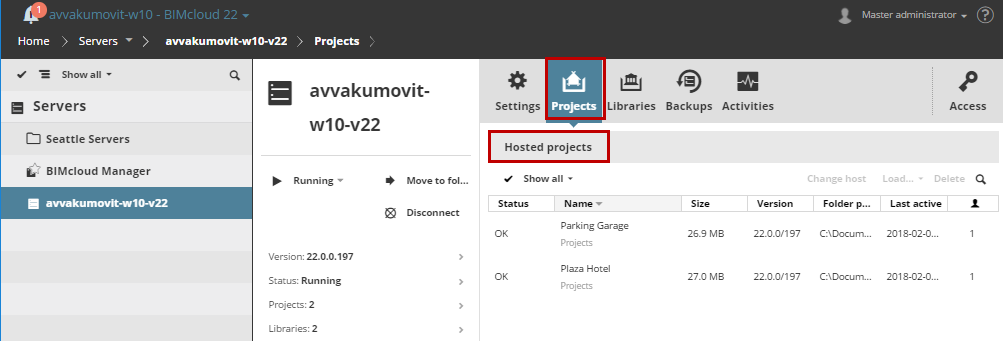

The Projects and Libraries panels are available for each selected Server, on the Servers page of BIMcloud Manager.
Missing projects/libraries section
If the BIMcloud Manager refers to a project on a Server, but it is not there, then the project/library is listed in the Missing projects or Missing libraries section.
Columns in expanded layout:
•Name: Name and path of the project/library. If the data is unused, then it displays the last known name and path of the data
•Last active: Last time the data was accessed
•Joined users: Number of currently joined users in a project
Available functions:
•Delete: Removes the project from the BIMcloud Manager
•Link to hosted project: The project/library can be re-linked to an Unused project/library hosted on the current or any other Server
The BIMcloud Manager and the BIMcloud Server are separate programs. A project/library that is listed in the Navigator of the BIMcloud Manager must have a linked project or library data available on the Server as well. Also, the reverse is also true: data hosted on the Server must be linked to a project/library entity on the Manager.
Sometimes the two components will become out of sync (e.g. one of the components was restored from a snapshot).
Depending on which component was rolled back, two kind of errors are possible:
•Missing project/library: A project/library exists on the BIMcloud Manager (it is visible in the Project Navigator), but the data it refers to on the host Server is missing
•Unused project/library: project/library data exists on the Server, but the BIMcloud Manager does not know about it and does not have a matching entry in the project/library Navigator

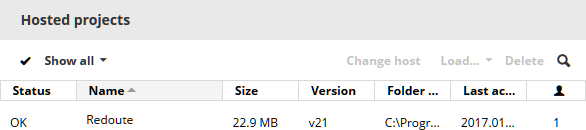

Hosted projects/libraries section
All projects/libraries hosted by the current Server are listed in this table, even if they are not used by the Manager. The status column shows whether the hosted data is linked and actively used by the Manager. If the Status is Unused, then the Manager does not have any project/library which uses this data.
Columns in Expanded Layout:
•Name: Name and path of the project/library. If the data is unused, then it displays the last known name and path of the data
•Version: Version of the ARCHICAD project
•Status: OK / Unused, depending on whether the project/library is linked by the Manager
•Last activity: Last time the data was accessed
•Last backup
•Active users: Number of currently joined users in a project

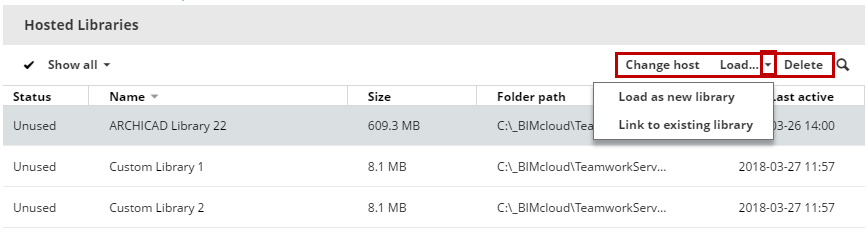

Available commands for selected Project/Library
•Delete: Deletes the project/library
•Load as new project/library: Only available for Unused projects/libraries. Creates a new project/library on the Manager from the hosted data.
•Link to existing project/library: Only available for Unused projects/libraries. Links the data to a Missing project/library.
