The BIMcloud tray application is automatically installed on the server computer(s); it is always automatically executed at system start. This application is the control center of all installed components.

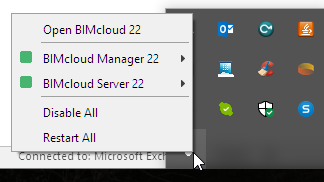

Right-click the tray icon to access related commands:
These can include:
•Status of the component(s)
•Shortcut to open the BIMcloud Manager (if installed)
•Shortcut to re-configure the components
•Quick Start/Stop/Restart functions

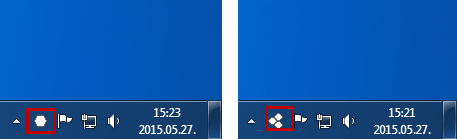

The tray application’s color gives quick feedback about the health of the components
•Black and white: All components are running
•Yellow highlight: One or more components are not running properly
•Red: None of the components is running
Note: If a server has been manually stopped in the BIMcloud Manager, the tray will still indicate that the server connection is OK.
If multiple BIMcloud Servers are installed on the same computer, then each BIMcloud Server will have its own Tray icon and controls.
