Choose dimension presets for MEP route

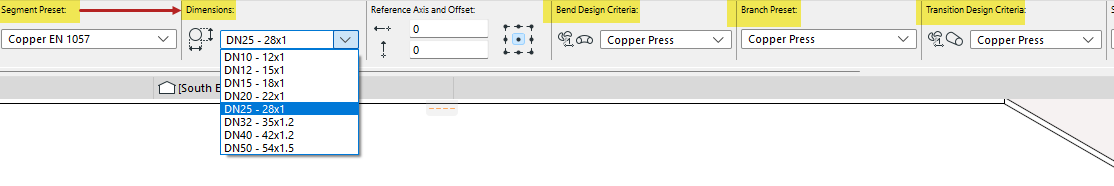

From the info box, choose presets (table of dimensions) for the parts of the MEP route: segments, elbows, branches, and transitions.

•For route segments, choose a Segment Preset

•For route segments: Also choose a DN dimension. Elbows and branches of this route will also use the same DN from their respective presets.

•For elbow and transition elements, choose a preset under “Design Criteria”

•For branch elements, choose a preset from “Branch Preset”
